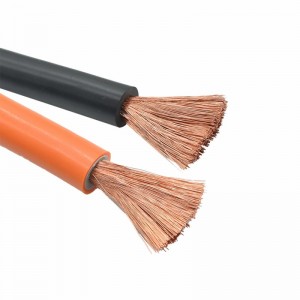

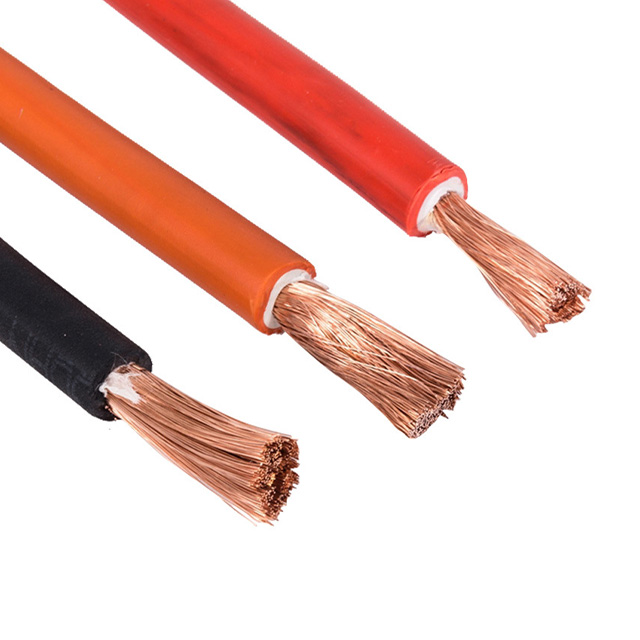

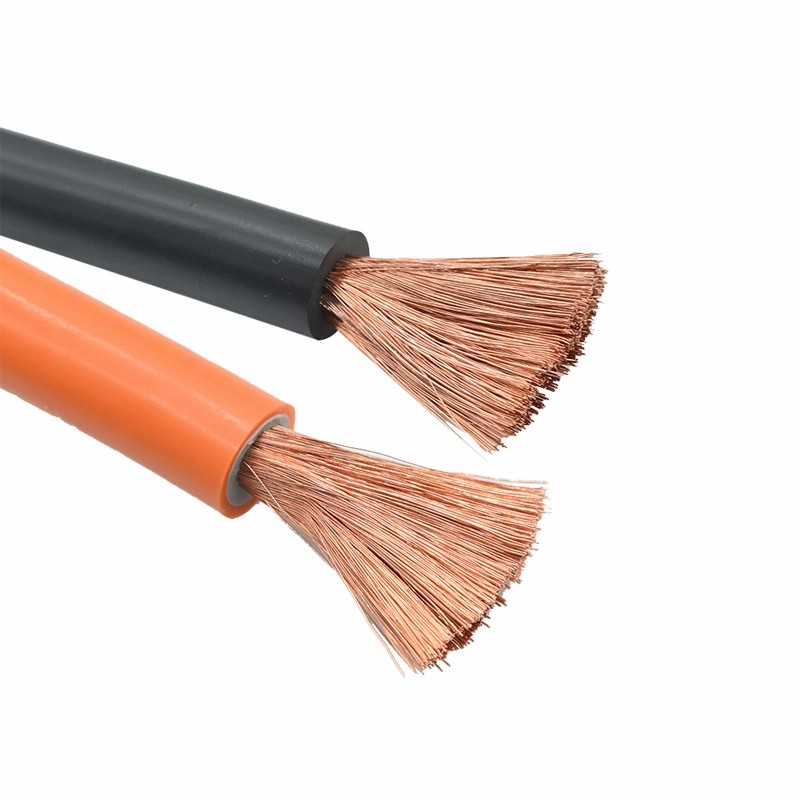

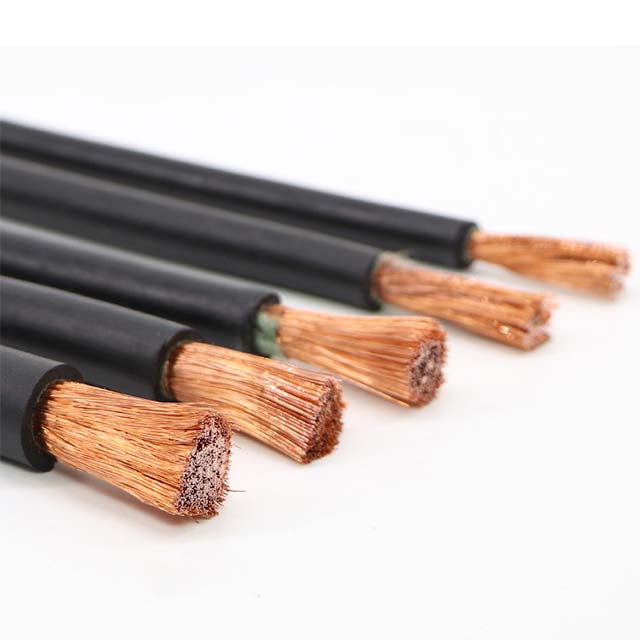

Rubber Flexible Welding Cable

Short Description:

Conductor: Copper Conductor

Insulation: Rubber compound/PVC

Color: Black, Orange, Red

Jacket: Rubber compound/PVC

Nominal Voltage: 450/750V

Email: sales@zhongweicables.com





Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Payment: T/T, L/C, PayPal

Stock Sample is Free & Available


Product Detail

Product Tags

Application

Welding cable are used in electrical equipment under low stress in dry or damp indoor or outdoor environments. They are commonly used as connection cables in horticulture or workshop tools that might be subject to or in contact with oils and fats. Also suitable for fixed installation in furniture,decorative coverings,wall partitions and prefabricated building parts.

Constrution

Rubber Flexible Welding Cable

Characteristics

Test Voltage 50Hz: 1000V

Maximum conductor operating temp: +85°C

Lowest ambient temperature for fixed installation: -40°C

Lowest installation temperature: -25°C

Maximum short-circuit conductor temperature: +250°C

Pulling strength. The maximum static pulling strength may not exceed 15N/mm2

Minimum bending radius: 6 x D . D - overall diameter of cable

Flame propagation: EN 60332-1-2:2004,IEC 60332-1-2:2004

Standard

International: IEC 60502, IEC 60228, IEC60245-6:1994

China: GB/T 12706.1-2008  GB/T 9330-2008

Other standards such as BS,DIN and ICEA upon request

Parameters

Cross Section

Max Resistance At 20°C

 Thickness of
Sheath

Min.OD

Max. OD

Current

mm2

Ω/km

mm

mm

mm

amp

10

1.91

2

7.8

10

110

16

1.21

2

9

11.5

138

25

0.78

2

10

13

187

35

0.554

2

11.5

14.5

233

50

0.386

2.2

13

17

295

70

0.272

2.4

15

19

372

95

0.206

2.6

17.5

21.5

449

120

0.161

2.8

19.5

24

523

150

0.129

3

21.5

26

608

185

0.106

3.2

23

29

690

240

0.0801

3.4

27

32

744

300

0.0641

3.6

30

35

840

400

0.0486

3.8

33

39

970
