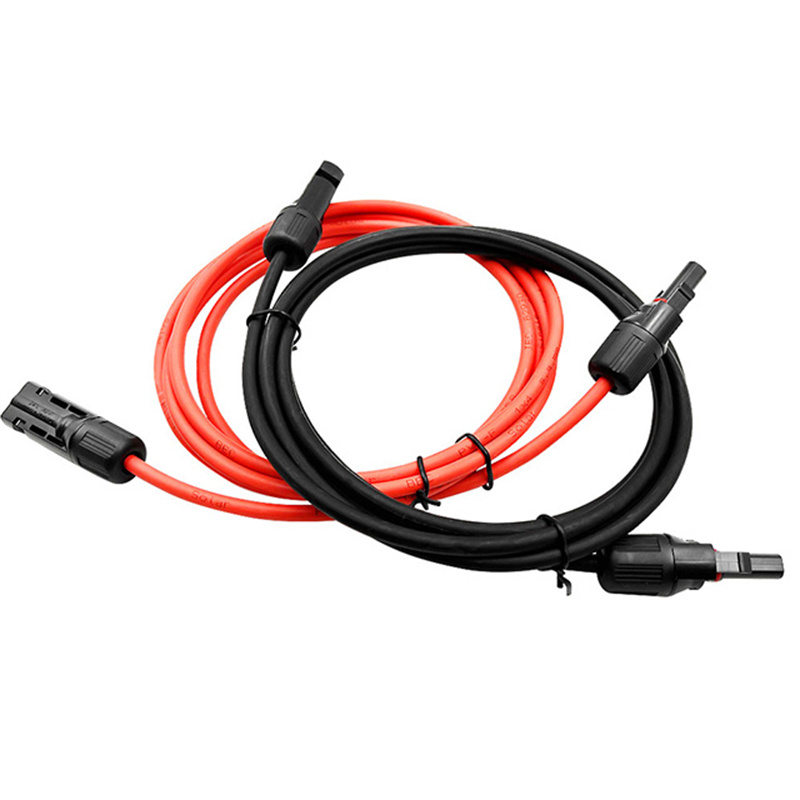

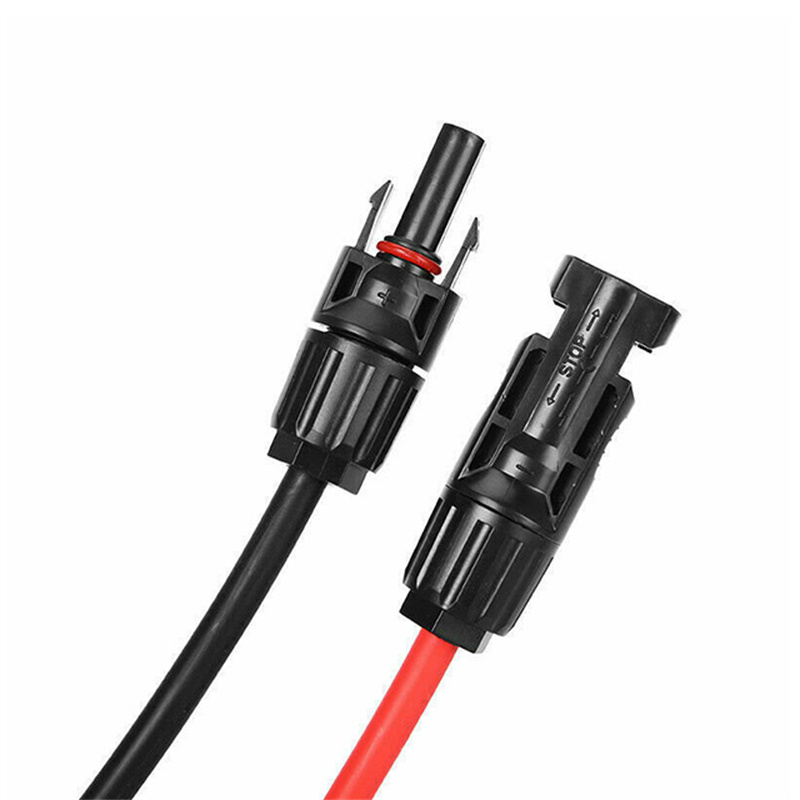

3m 5m 1 Pair Red Black Solar Power Extension Cable
Application
An important part of the solar system. Good connection quality ensures the long-term safe operation of the photovoltaic system and effectively reduces the failure rate and late operation cost of the photovoltaic system. Suitable for desert, lake, seaside, mountain and other harsh outdoor environment.
Constrution
Characteristics
| Rated voltage | DC 1500V / AC 1000V |
| Rated current | 17A(1.5mm); 22.5A(2.5mm); 30A(4mm,6mm); 40A(10mm) |
| Test voltage | 6kv（50Hz，1min） |
| Insulation material： | PPO |
| Contact material | Tinned copper |
| Protection Degree | IP68 |
| Insulation Resistance | 1000 MΩ/km |
Standards
IEC 60228, EN60332
Parameters
|
No. Of cores x Construction （mm） |
Conductor Construction （n / mm） |
Conductor No./mm |
Insulation Thickness (mm) |
Current Aarring Capacity (A) |
|
1x1.5 |
30/0.25 |
1.58 |
4.9 |
30 |
|
1x2.5 |
50/0.256 |
2.06 |
5.45 |
41 |
|
1x4.0 |
56/0.3 |
2.58 |
6.15 |
55 |
|
1x6 |
84/0.3 |
3.15 |
7.15 |
70 |
|
1x10 |
142/0.3 |
4 |
9.05 |
98 |
|
1x16 |
228/0.3 |
5.7 |
10.2 |
132 |
|
1x25 |
361/0.3 |
6.8 |
12 |
176 |
|
1x35 |
494/0.3 |
8.8 |
13.8 |
218 |
|
1x50 |
418/0.39 |
10 |
16 |
280 |
|
1x70 |
589/0.39 |
11.8 |
18.4 |
350 |
|
1x95 |
798/0.39 |
13.8 |
21.3 |
410 |
FAQ
Q: Can we have our logo or company name to be printed on your products or the package?
A: The OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.
Q: What’s the payment terms?
A: 30% T/T deposit, 70% T/T balance payment before shipment.
Q: How does your factory do regarding quality control?
A: We have a strict quality control system, and our professional experts will check the appearance and test functions of all our items before shipment.
Q: How can I get a sample to test your quality?
A: We can provide free samples for your test and checking, just need to bear the freight charge.
