8.7/15kv CU/XLPE/PVC Medium Voltage Power Cable

Short Description:

Conductor: Copper

Insulation: XLPE

Insulation Color: Red, Blue, Grey, Yellow/Green or as request

Rated Voltage: 8.7/15KV

Jacket: PVC

Standard: IEC, UL, GB, JIS, GS, ASTM

Email: sales@zhongweicables.com





Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Payment: T/T, L/C, PayPal

Stock Sample is Free & Available


Product Detail

Product Tags

Application

The cable are designed for distribution of electrical power with nominal voltage Uo/U ranging from 3.6/6.6KV to 19/33KV and frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.

Constrution

AVAB

Characteristics

Rated voltage  8.7 / 15 kV
Conductor  Pure Copper
Insulation  XLPE
Sheath  PVC
Operating Temperature  up to 90°C
Short Circuit Temperature  250°C
Bending Radius  15 x OD

Standards

GB/T 12706、IEC、BS、DIN and ICEA upon request

Parameters

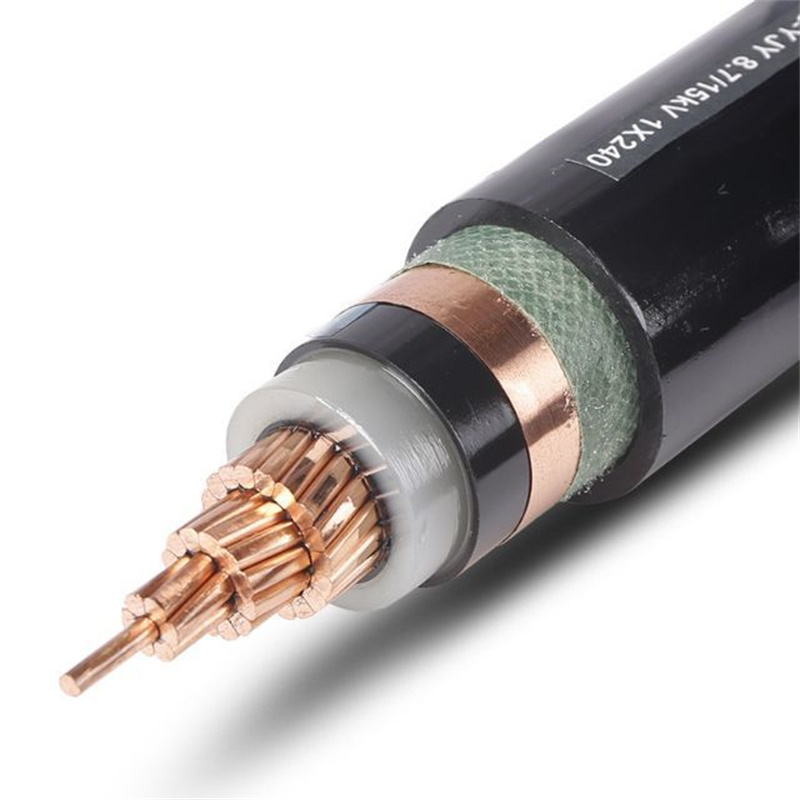

1 Core Medium Voltge Power Cable

Nom. Cross-section of conductor

Insulation Thickness

Sheath Thickness

Approx. O.D.

Approx Weight

Max. D.C. Resistance of Conductor (20°C)

Test Voltage A.C

Current Rating

mm2

mm

mm

mm

kg/km

Ω/km

kV/5min

In air(A)

In soil(A)

1×25

4.5

1.8

23

680

0.727

30.5

140

150

1×35

4.5

1.8

24

804

0.524

30.5

175

180

1×50

4.5

1.9

25

984

0.387

30.5

205

215

1×70

4.5

1.9

27

1201

0.268

30.5

260

265

1×95

4.5

2

29

1490

0.193

30.5

315

315

1×120

4.5

2

30

1765

0.153

30.5

365

360

1×150

4.5

2.1

32

2091

0.124

30.5

415

405

1×185

4.5

2.1

34

2452

0.0991

30.5

475

455

1×240

4.5

2.2

36

3034

0.0754

30.5

565

530

1×300

4.5

2.4

39

3672

0.0601

30.5

645

595

1×400

4.5

2.4

42

4646

0.047

30.5

750

680

1×500

4.5

2.5

45

5651

0.0366

30.5

865

765

1×630

4.5

2.5

50

7154

0.0283

30.5

990

860

1×800

4.5

2.7

55

8750

0.0221

30.5

1140

950

1×1000

4.5

2.9

59

10727

0.0176

30.5

1250

1040

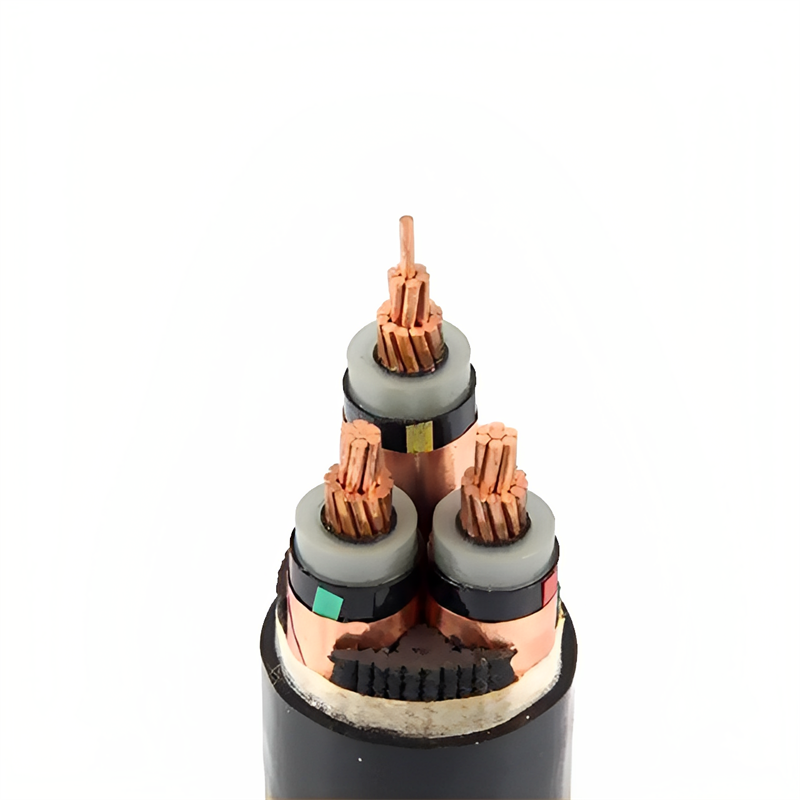

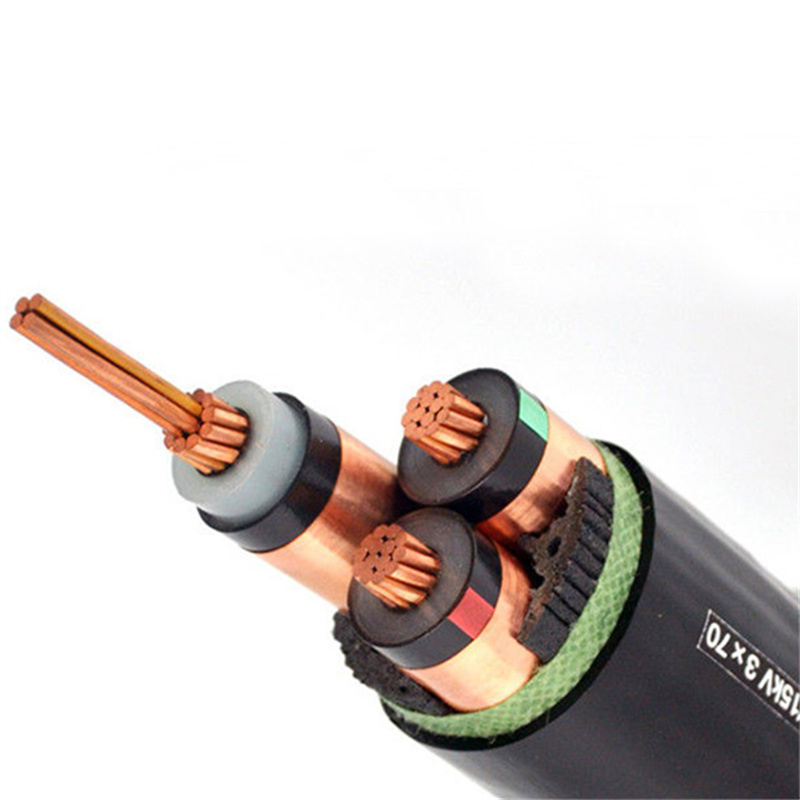

3 Core Medium Voltge Power Cable

Nom. Cross-section of conductor

Insulation Thickness

Sheath Thickness

Approx. O.D.

Approx Weight

Max. D.C. Resistance of Conductor (20°C)

Test Voltage A.C

Current Rating

mm2

mm

mm

mm

kg/km

Ω/km

kV/5min

In air(A)

In soil(A)

3×25

4.5

2.4

46

2573

0.727

30.5

120

125

3×35

4.5

2.6

48

2985

0.524

30.5

145

155

3×50

4.5

2.7

51

3529

0.387

30.5

175

180

3×70

4.5

2.8

55

4197

0.268

30.5

220

220

3×95

4.5

2.9

58

5230

0.193

30.5

265

265

3×120

4.5

3

61

6120

0.153

30.5

305

300

3×150

4.5

3.1

64

7207

0.124

30.5

350

340

3×185

4.5

3.2

68

8378

0.0991

30.5

395

380

3×240

4.5

3.4

73

10177

0.0754

30.5

470

435

3×300

4.5

3.5

77

12159

0.0601

30.5

535

485

3×400

4.5

3.8

86

15641

0.047

30.5

610

520

Packing & Shipping

FAQ

Q: Can we have our logo or company name to be printed on your products or the package?
A: The OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.
Q: What’s the payment terms?
A: 30% T/T deposit, 70% T/T balance payment before shipment.
Q: How does your factory do regarding quality control?
A: We have a strict quality control system, and our professional experts will check the appearance and test functions of all our items before shipment.
Q: How can I get a sample to test your quality?
A: We can provide free samples for your test and checking, just need to bear the freight charge.

Contact us for more informations about our products, our professional team will serve you and customized according to your requirements.
