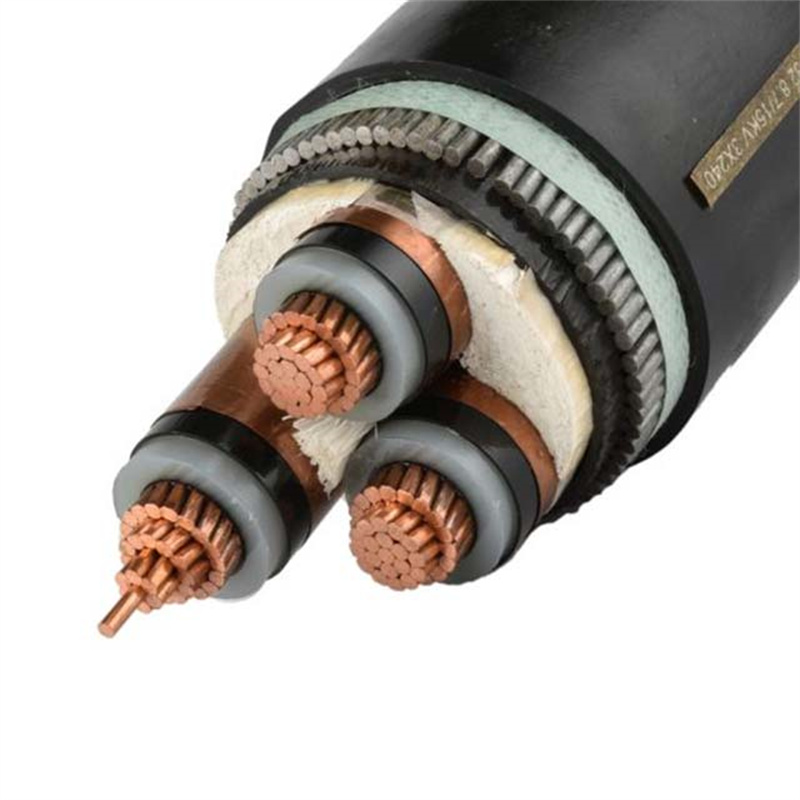

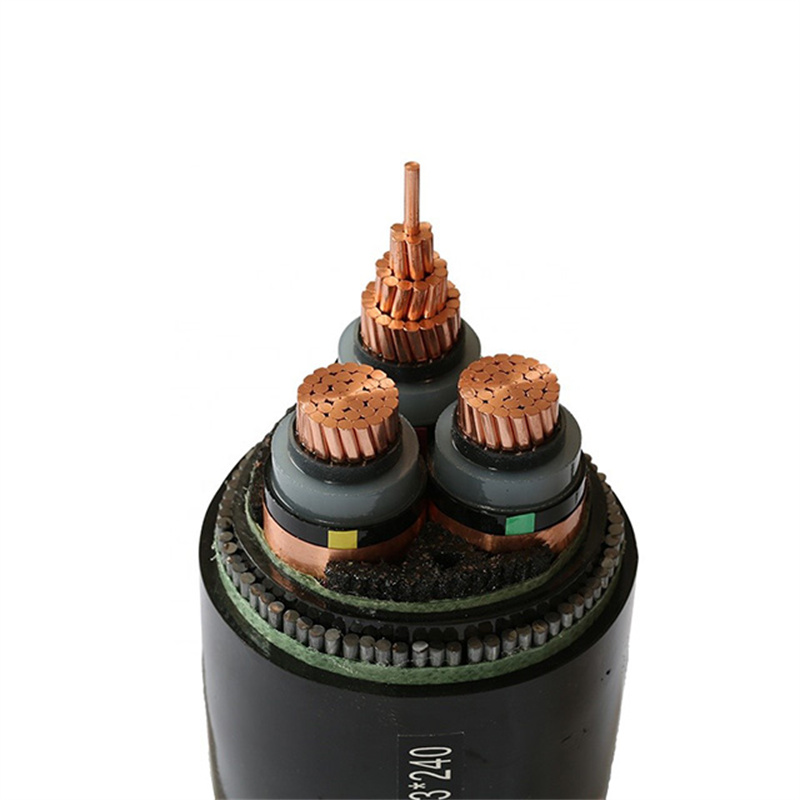

Medium Voltage Power Cable
Application
Medium voltage power cable is used in power transmission and distribution line. It does not only have excellent electric, mechanical properties, but also has power resistance against chemical corrosion, heat aging and environmental stress.
Constrution
Characteristics
Rated voltage: 8.7 / 15 kV
Conductor: Copper or Aluminum
Minimum installation temperature: 0°C ;
Maximum installation temperature: +60°C;
Installation type: Outdoor – Direct burial;
Minimum operating temperature:-15°C Maximum operating temperature:90°C;
Short-circuit max. conductor temperature: 250°C;
Standards
GB/12706-2008, IEC60502,IEC 60228,IEC60332 BS 5467,BS 6622 , IS 1554 , IS 7098and ICEA S-66-524 etc.
Parameters
|
8.7/15kv 1 Core Medium Voltge Steel Wire Armoured Cable |
||||||||||
|
Nom. Cross-section of conductor |
Insulation Thickness |
Inner Covering Thickness |
Dia. Of Armor Wire |
Sheath Thickness |
Approx. O.D. |
Approx Weight |
Max. D.C. Resistance of Conductor (20°C) |
Test Voltage A.C |
Current Rating |
|
|
1×25 |
4.5 |
1.2 |
1.6 |
1.9 |
28 |
1714 |
0.727 |
30.5 |
140 |
150 |
|
1×35 |
4.5 |
1.2 |
1.6 |
1.9 |
29 |
1874 |
0.524 |
30.5 |
170 |
180 |
|
1×50 |
4.5 |
1.2 |
1.6 |
1.9 |
30 |
2086 |
0.387 |
30.5 |
205 |
215 |
|
1×70 |
4.5 |
1.2 |
2 |
2 |
33 |
2641 |
0.268 |
30.5 |
260 |
265 |
|
1×95 |
4.5 |
1.2 |
2 |
2.1 |
35 |
2990 |
0.193 |
30.5 |
315 |
315 |
|
1×120 |
4.5 |
1.2 |
2 |
2.1 |
36 |
3332 |
0.153 |
30.5 |
360 |
360 |
|
1×150 |
4.5 |
1.2 |
2 |
2.2 |
38 |
3723 |
0.124 |
30.5 |
410 |
405 |
|
1×185 |
4.5 |
1.2 |
2 |
2.2 |
40 |
4174 |
0.0991 |
30.5 |
470 |
455 |
|
1×240 |
4.5 |
1.2 |
2 |
2.3 |
42 |
4874 |
0.0754 |
30.5 |
555 |
530 |
|
1×300 |
4.5 |
1.3 |
2.5 |
2.4 |
45 |
6056 |
0.0601 |
30.5 |
640 |
595 |
|
1×400 |
4.5 |
1.3 |
2.5 |
2.5 |
49 |
7195 |
0.047 |
30.5 |
745 |
680 |
|
1×500 |
4.5 |
1.4 |
2.5 |
2.6 |
54 |
8485 |
0.0366 |
30.5 |
885 |
765 |
|
8.7/15kv 3 Core Medium Voltge Steel Wire Armoured Cable |
||||||||||
|
Nom. Cross-section of conductor |
Insulation Thickness |
Inner Covering Thickness |
Dia. Of Armor Wire |
Sheath Thickness |
Approx. O.D. |
Approx Weight |
Max. D.C. Resistance of Conductor (20°C) |
Test Voltage A.C |
Current Rating |
|
| 3×25 |
4.5 |
1.4 |
2.5 |
2.7 |
54 |
5224 |
0.727 |
30.5 |
120 |
125 |
| 3×35 |
4.5 |
1.5 |
2.5 |
2.8 |
57 |
5790 |
0.524 |
30.5 |
140 |
155 |
| 3×50 |
4.5 |
1.5 |
2.5 |
2.9 |
60 |
6485 |
0.387 |
30.5 |
165 |
180 |
| 3×70 |
4.5 |
1.6 |
2.5 |
3 |
64 |
7501 |
0.268 |
30.5 |
210 |
220 |
| 3×95 |
4.5 |
1.6 |
2.5 |
3.1 |
67 |
8548 |
0.193 |
30.5 |
255 |
265 |
| 3×120 |
4.5 |
1.7 |
2.5 |
3.2 |
70 |
9663 |
0.153 |
30.5 |
290 |
300 |
| 3×150 |
4.5 |
1.8 |
3.15 |
3.4 |
75 |
11811 |
0.124 |
30.5 |
330 |
340 |
| 3×185 |
4.5 |
1.8 |
3.15 |
3.5 |
78 |
13282 |
0.0991 |
30.5 |
375 |
380 |
| 3×240 |
4.5 |
1.9 |
3.15 |
3.7 |
84 |
15567 |
0.0754 |
30.5 |
435 |
435 |
| 3×300 |
4.5 |
2 |
3.15 |
3.8 |
88 |
17937 |
0.0601 |
30.5 |
495 |
485 |
