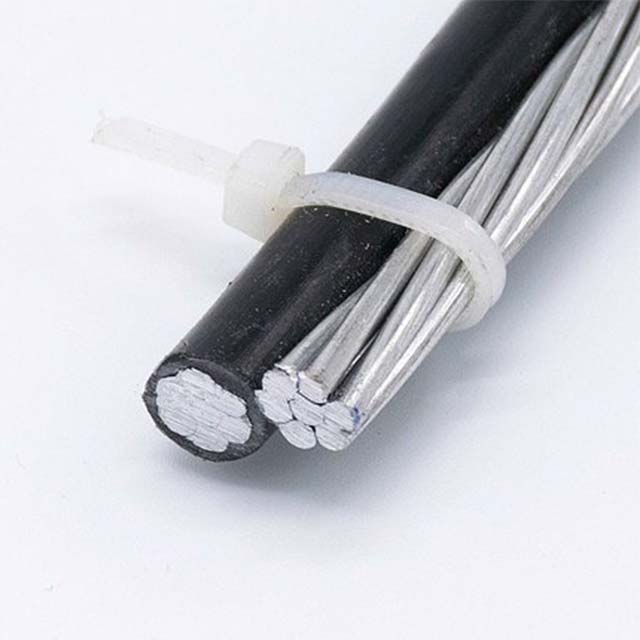

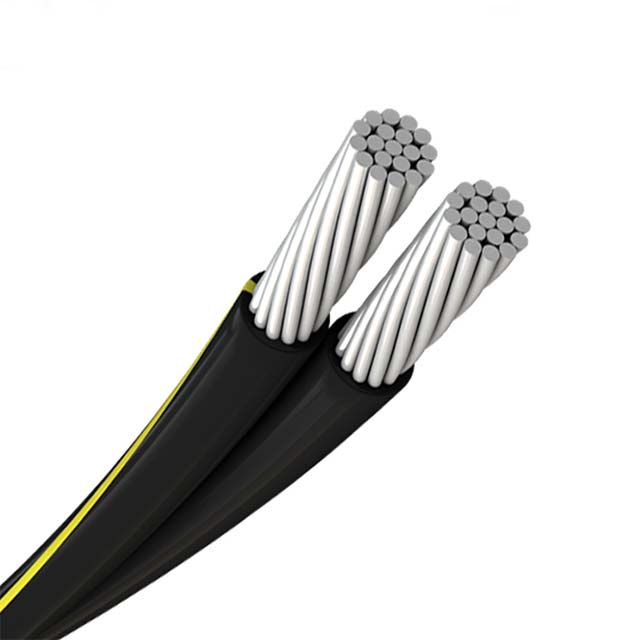

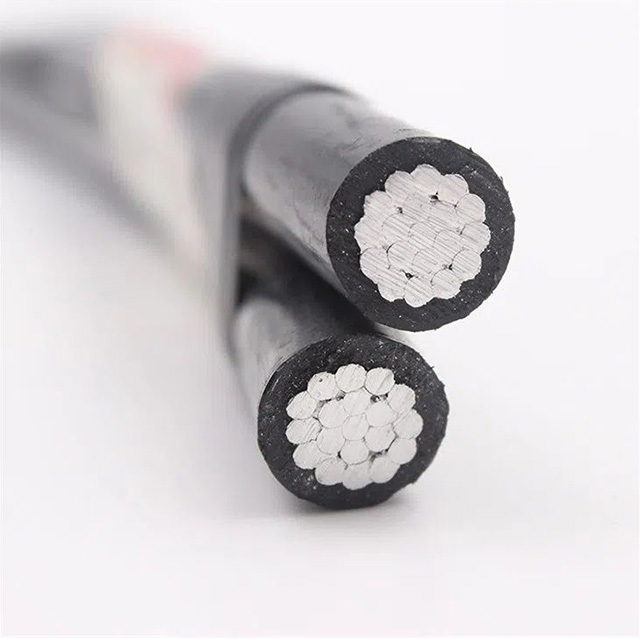

Duplex Service Drop Cable
Application
Primarily used for 120 volt overhead service applications such as street lighting outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLPE) insulated conductors.
Constrution
1.Phase Conductor
Circular stranded, rounded, aluminum conductor 1350
2.Neutral (Messenger) Conductor
Bare AAC, AAAC 6201, ACSR
3. Insulation
Black color Polyethylene (PE) or Cross-linked polyethylene (XLPE)
Characteristics
Rated voltage:
0.6/1kv
Mechanical performance
Minimum bending radius: x10 cable diameter
Therminal performance
Maximum service temperature: 90°C
Maximum short-circuit temperature: 250°C(max.5s)
Minimum service temperature: -40°C
Standards
• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
• Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.
Parameters
|
Duplex Service Drop - Aluminum Conductor AAC |
||||||||||
|
Code Word |
Phase Conductors |
Bare Neutral |
Weight per |
Rating |
||||||
|
1000 ft. (lbs) |
(AMPS) |
|||||||||
|
Size AWG |
Strand |
Insulation Thickness (MLS) |
Size AWG |
Strand |
Breaking Strength (lbs) |
XLP |
Poly |
XLP |
Poly |
|
|
Peakingese |
6 |
Solid |
45 |
6 |
7/w |
563 |
63.5 |
61.7 |
85 |
70 |
|
Collie |
6 |
7/w |
45 |
6 |
7/w |
563 |
66.8 |
63.1 |
85 |
70 |
|
Dachshund |
4 |
Solid |
45 |
4 |
7/w |
881 |
95.5 |
93.4 |
110 |
90 |
|
Spaniel |
4 |
7/w |
45 |
4 |
7/w |
881 |
100.5 |
95.4 |
110 |
90 |
|
Doberman |
2 |
7/w |
45 |
2 |
7/w |
1,350 |
152.7 |
145.7 |
150 |
120 |
|
Malamute |
1/0 |
19/w |
60 |
1/0 |
7/w |
1,990 |
242.6 |
234.2 |
205 |
160 |
|
Duplex Service Drop - Aluminum Conductor ACSR - Neutral Messenger |
||||||||||
|
Code Word |
Phase Conductors |
Bare Neutral |
Weight |
Rating |
||||||
|
per 1000 (lbs) |
(AMPS) |
|||||||||
|
Size AWG |
Strand |
Insulation Thickness (MLS) |
Size AWG |
Strand |
Breaking Strength (lbs) |
XLP |
Poly |
XLP |
Poly |
|
|
Setter |
6 |
Solid |
45 |
6 |
6/1 |
1,190 |
75 |
73.2 |
85 |
70 |
|
Shepherd |
6 |
7/w |
45 |
6 |
6/1 |
1,190 |
78.3 |
74.6 |
85 |
70 |
|
Eskimo |
4 |
Solid |
45 |
4 |
6/1 |
1,860 |
113.7 |
111.6 |
110 |
90 |
|
Terrier |
4 |
7/w |
45 |
4 |
6/1 |
1,860 |
118.7 |
113.6 |
110 |
90 |
|
Chow |
2 |
7/w |
45 |
2 |
6/1 |
2,850 |
181.7 |
174.7 |
150 |
120 |
|
Bull |
1/0 |
19/w |
60 |
1/0 |
6/1 |
4,380 |
288.7 |
280.3 |
200 |
160 |
|
Duplex Service Drop - Aluminum Conductor AAAC - Alloy Neutral Messenger |
||||||||||
|
Code Word |
Phase Conductors |
Bare Neutral |
Weight |
Rating |
||||||
|
per 1000 (lbs) |
(AMPS) |
|||||||||
|
Size AWG |
Strand |
Insulation Thickness (MLS) |
Size AWG |
Strand |
Breaking Strength (lbs) |
XLP |
Poly |
XLP |
Poly |
|
|
Chihuahua |
6 |
Solid |
45 |
6 |
7/w |
1,110 |
67.6 |
65.8 |
85 |
70 |
|
Vizsla |
4 |
7/w |
45 |
6 |
7/w |
1,110 |
70.9 |
67.2 |
85 |
70 |
|
Harrier |
4 |
Solid |
45 |
4 |
7/w |
1,760 |
102 |
99.9 |
110 |
90 |
|
Whippet |
2 |
7/w |
45 |
4 |
7/w |
1,760 |
107 |
101.9 |
110 |
90 |
|
Schnauzer |
1/0 |
7/w |
45 |
2 |
7/w |
2,800 |
163.3 |
156.2 |
150 |
120 |
|
Heeler |
19/w |
60 |
1/0 |
7/w |
4,460 |
259.2 |
250.8 |
200 |
160 |
|
