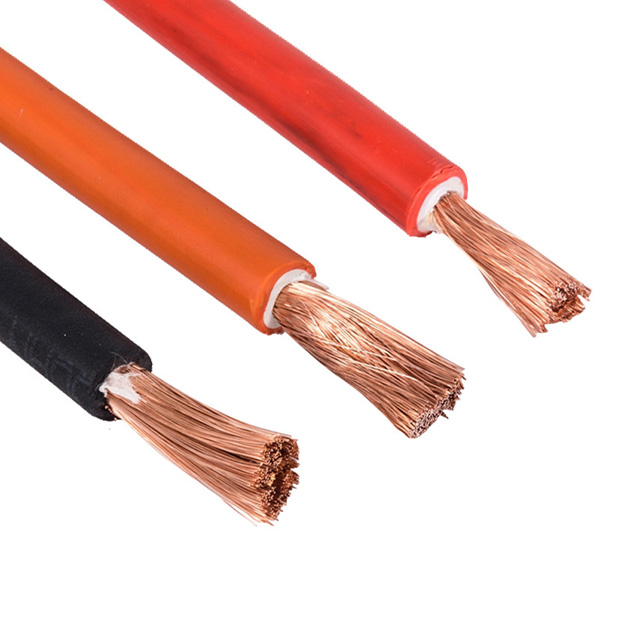

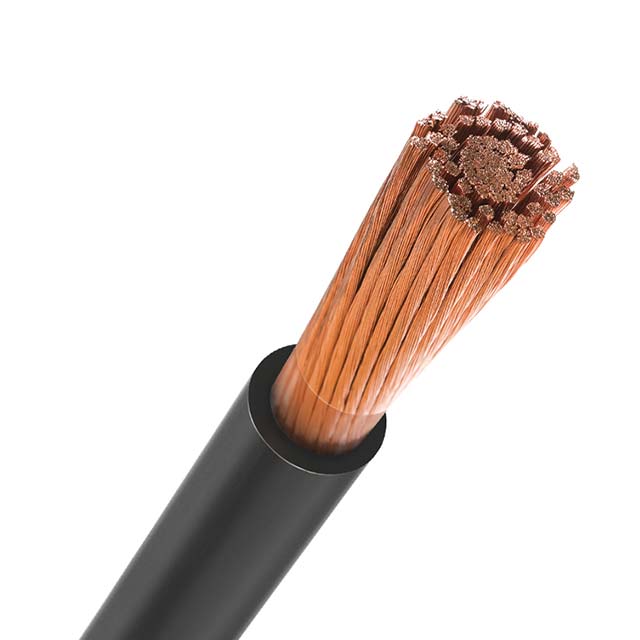

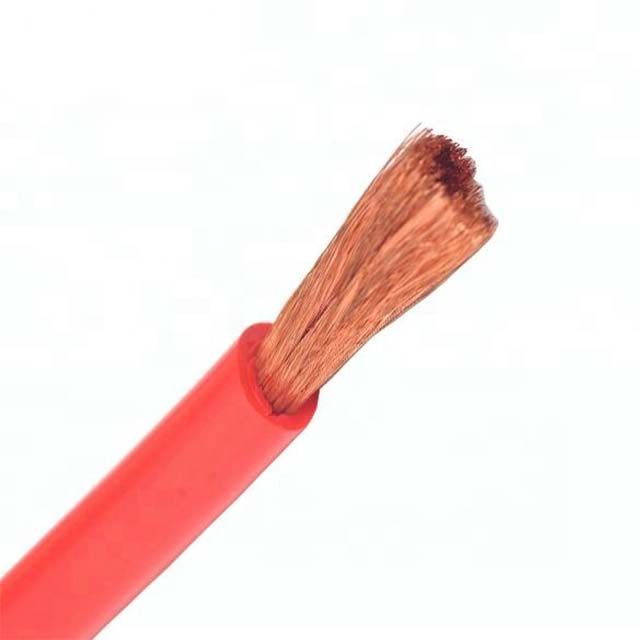

H01N2-D Welding Cable
Application
H01N2-D Welding Cable can be used as entertainment or stage lighting cables for movie theatres, lighting and sound systems, and communication vans. Other possible uses for welding cable include battery cables for cars, inverter cables, and as a cheaper alternative to pendant/reeling cable on hoists and cranes. For example, many solar power installations use welding cable extensively to connect solar panels, battery banks, and converters.
Constrution
Characteristics
Test Voltage 50Hz: 1000V
Maximum conductor operating temp: +85°C
Lowest ambient temperature for fixed installation: -40°C
Lowest installation temperature: -25°C
Maximum short-circuit conductor temperature: +250°C
Pulling strength: The maximum static pulling strength may not exceed 15N/mm2
Minimum bending radius: 6 x D , D - overall diameter of cable
Flame propagation: EN 60332-1-2:2004,IEC 60332-1-2:2004
Standards
GB/t5013.6 IEC2045-81 VDE 0282 ISD 473 BS 638-4
Parameters
| Cross Section | Max Resistance At 20°C | Thickness of Sheath | Min.OD | Max. OD | Current |
| mm2 | Ω/km | mm | mm | mm | amp |
| 10 | 1.91 | 2 | 7.8 | 10 | 110 |
| 16 | 1.21 | 2 | 9 | 11.5 | 138 |
| 25 | 0.78 | 2 | 10 | 13 | 187 |
| 35 | 0.554 | 2 | 11.5 | 14.5 | 233 |
| 50 | 0.386 | 2.2 | 13 | 17 | 295 |
| 70 | 0.272 | 2.4 | 15 | 19 | 372 |
| 95 | 0.206 | 2.6 | 17.5 | 21.5 | 449 |
| 120 | 0.161 | 2.8 | 19.5 | 24 | 523 |
| 150 | 0.129 | 3 | 21.5 | 26 | 608 |
| 185 | 0.106 | 3.2 | 23 | 29 | 690 |
| 240 | 0.0801 | 3.4 | 27 | 32 | 744 |
| 300 | 0.0641 | 3.6 | 30 | 35 | 840 |
| 400 | 0.0486 | 3.8 | 33 | 39 | 970 |
