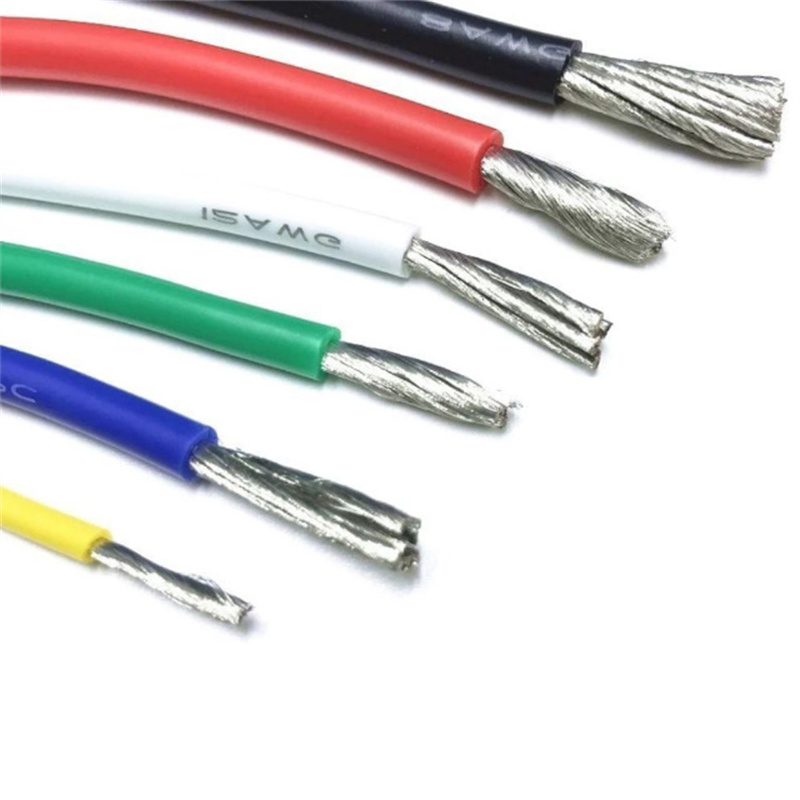

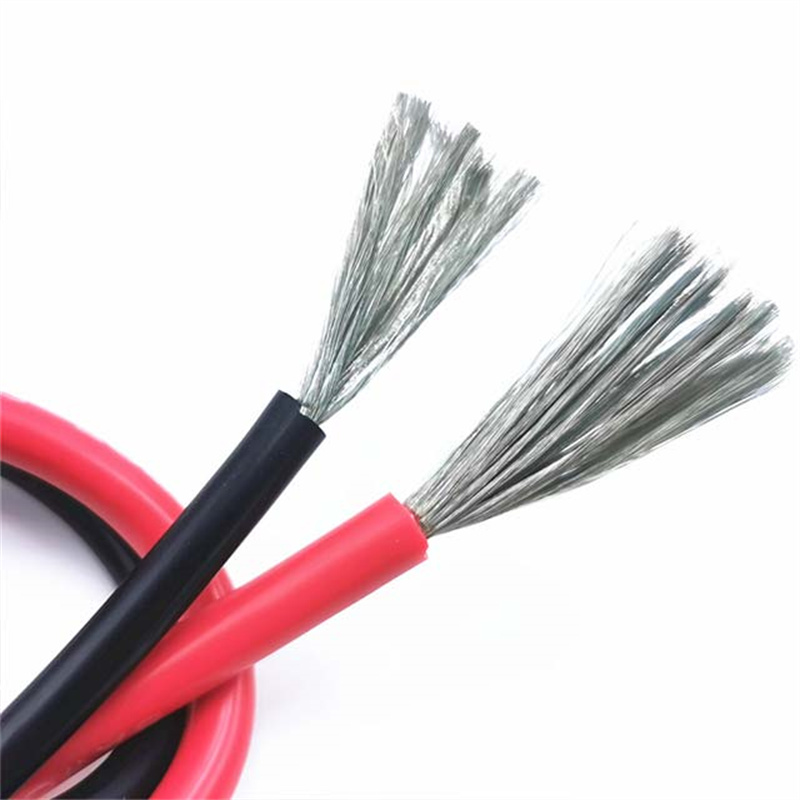

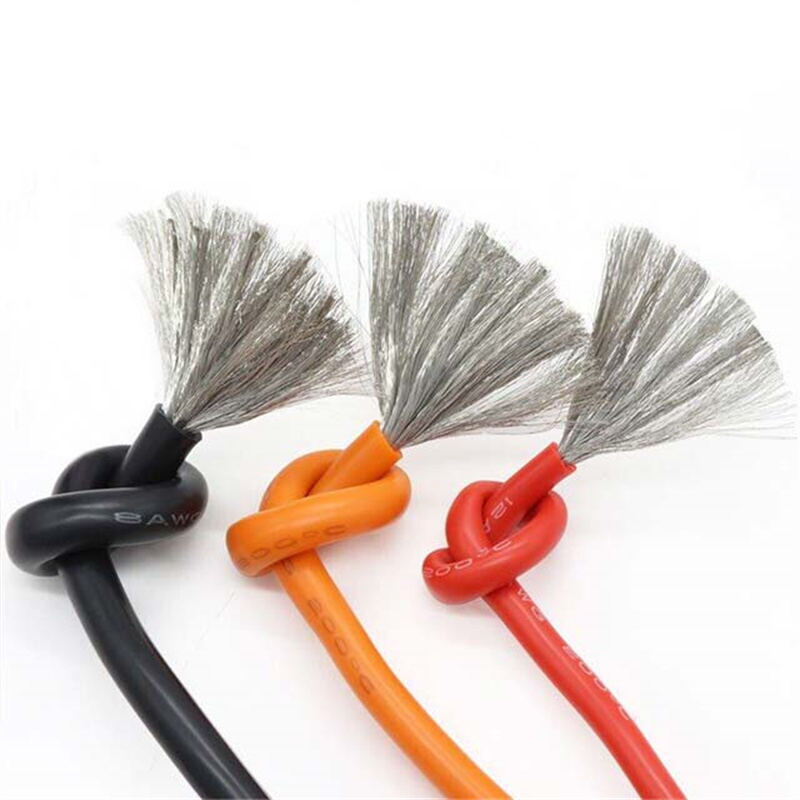

High Temperature Silicone Rubber Cable
Application
Silicone Cable use electronic industry. It can be used for temperature compensation wire, low temperature wire, high temperature heating wire, anti-aging wire and flame retardant wire; household appliances industry, can be used for air conditioners, microwave ovens, electronic disinfection cabinet, rice cookers, electronic thermos, Electric oven, electric wok, lighting, lighting and other internal wiring.
Constrution
Characteristics
1.Conductor material : tinned copper
2. Insulator material : silicone Rubber
3. Rated Temperature : -60°C~+200°C
4. Single wire diameter : 0.08mm
5. Nominal Voltage : 600 V
6. Test Voltage : 2000 V
7. Colors : Black ; Red ; White ; Blue ; Yellow; Green;Brown,Green/Yellow
Standards
UL758, UL62, UL1581
Parameters
|
Conductor |
Iusulator |
Rical Character |
Sectional area |
Carrying current |
packing |
|||
| Spe (AWG) | Copper wire shares (compos.NO./mm) | Diameter (mm) | Jacket Thick (mm) | Overall diameter (mm) | Conductor resistance (Ohm/km) | Square millimeter(mm2) | (ampere) | (M/coils) |
| 30AWG | 11/0.08 | 0.3 | 0.55 | 1.2 | 331 | 0.05 | 0.8 | 200 |
| 28AWG | 16/0.08 | 0.36 | 0.55 | 1.3 | 227.2 | 0.08 | 1.25 | 200 |
| 26AWG | 30/0.08 | 0.46 | 0.55 | 1.5 | 123 | 0.14 | 3.5 | 200 |
| 24AWG | 40/0.08 | 0.61 | 0.55 | 1.6 | 97.6 | 0.2 | 5 | 200 |
| 22AWG | 60/0.08 | 0.78 | 0.55 | 1.7 | 88.6 | 0.33 | 8.73 | 200 |
| 20AWG | 100/0.08 | 0.92 | 0.55 | 1.8 | 62.5 | 0.5 | 13.87 | 200 |
| 18AWG | 150/0.08 | 1.19 | 0.55 | 2.3 | 39.5 | 0.75 | 22 | 200 |
| 17AWG | 210/0.08 | 1.33 | 0.8 | 2.7 | 21.4 | 1 | 31 | 200 |
| 16AWG | 252/0.08 | 1.53 | 0.8 | 3 | 24.4 | 1.27 | 35 | 100 |
| 15AWG | 336/0.08 | 1.69 | 0.8 | 3.1 | 20.02 | 1.68 | 42 | 100 |
| 14AWG | 400/0.08 | 1.78 | 0.9 | 3.5 | 15.6 | 2.07 | 55.6 | 100 |
| 13AWG | 500/0.08 | 2.06 | 0.95 | 4 | 12.5 | 2.5 | 65 | 100 |
| 12AWG | 680/0.08 | 2.48 | 1 | 4.5 | 9.8 | 3.4 | 88.4 | 100 |
| 11AWG | 800/0.08 | 2.59 | 1 | 4.6 | 7.38 | 3.96 | 100 | 100 |
| 10AWG | 1050/0.08 | 3.06 | 1.25 | 5.5 | 6.3 | 5.3 | 140.6 | 100 |
| 8AWG | 1650/0.08 | 3.75 | 1.5 | 6.8 | 4.2 | 8.29 | 200 | 100 |
| 6AWG | 3430/0.08 | 5.4 | 1.3 | 8 | 1.2 | 17.23 | 320 | 50 |
| 4AWG | 5000/0.08 | 6.5 | 1.75 | 10.5 | 0.84 | 25 | 120 | |
| 2AWG | 7000/0.08 | 8 | 2 | 12 | 0.53 | 35 | 175 | |
