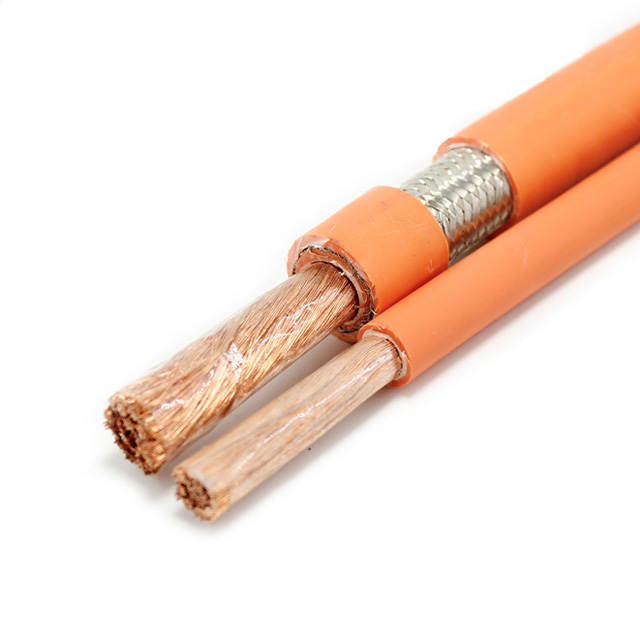

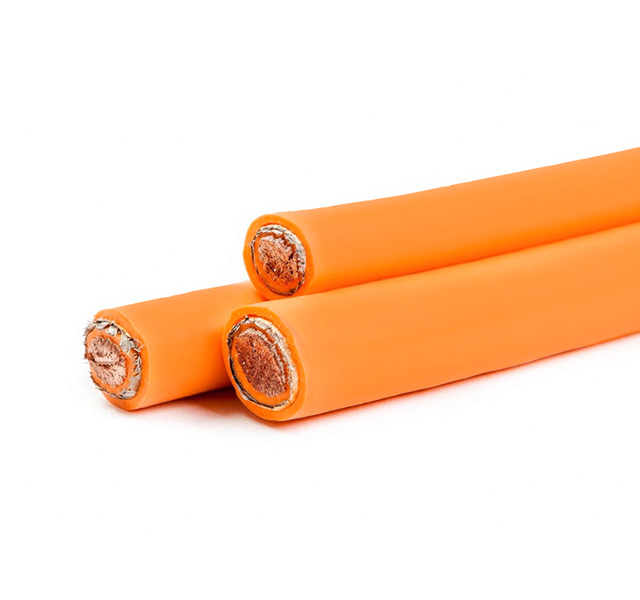

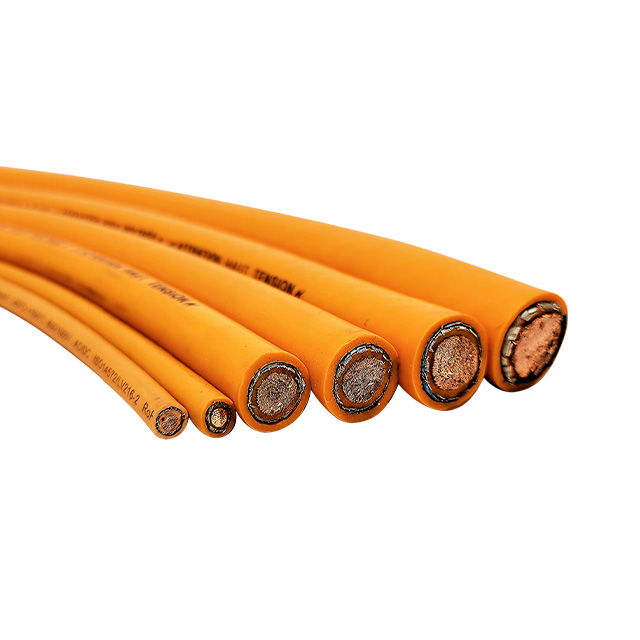

High Voltage Shielded EV Cable
Application
This High Voltage Screened EV Cable is intended for Electric Vehicle battery high voltage system, flexible and easy to bend. This High Voltage electric vehicle screened cable is used for connecting the charging port and the battery, battery inter wiring, the battery, and the engine and other electrical components to carry the electric current power. this type of high voltage electric vehicle screened cable can meet the very high performance for the harsh environment requirements inside the car.
Constrution
Characteristics
Voltage rating: AC 600V/DC 900V, AC 1000V/DC 1500V;
Insulation material: Silicone Rubber
Conductor material: Bare Copper/Tinned Copper
Type of shielding: aluminum foil
Outer sheath material: Silicone Rubber or other materials as required by customers
Fire performance: Flames extinguished at 70s,Keep unburned at least 50mm;
Min. bending radius: 5D(OD≤20mm); 6D(OD >20mm)
Short-term aging: 240h, Comply with QC/T 1037;
Long-term aging: 3000h, Comply with QC/T 1037;
Withstand Voltage：1.0kV/30min. Rise to 5.0kV/5min.(600/900v) 1.0kV/30min.Rise to 5.0kV/5min. Continue Rise to 8.0kV ( 1000/1500V);
Parameters
| Cable specifications (mm2) |
Conductor resistance max (bare copper) (mΩ/m at.20°C) |
Ref. (A) | Ref. (mm) | Rated voltage (AC/DC) |
Rated temperature | Color |
| 2.5 | 7.60 | 30 | 6.0 | 600V/900V 1000V/1500V | -40℃~ 175℃/200℃ | orange |
| 4 | 4.71 | 40 | 6.8 | |||
| 6 | 3.14 | 53 | 8.0 | |||
| 10 | 1.82 | 75 | 9.5 | |||
| 16 | 1.16 | 100 | 11.2 | |||
| 25 | 0.743 | 125 | 13.5 | |||
| 35 | 0.527 | 165 | 14.5 | |||
| 50 | 0.368 | 215 | 17.5 | |||
| 70 | 0.259 | 260 | 19.5 | |||
| 95 | 0.196 | 320 | 21.8 | |||
| 120 | 0.153 | 370 | 24.5 |
Advantage
1. High electrical insulation at high voltage with excellent resistance to high current and wide temperature range, hazard-free and corrosion resistant.
2. They are easy to install with the molded in EV connectors. There's no soldering making them inexpensive overall.
3. Electrically and thermally characterized for high speed and high reliability transmission of Electric Vehicle High Voltage system.
4. The halogen-free structure makes our cable high temperature resistant, flame retardant and self-extinguishing.
