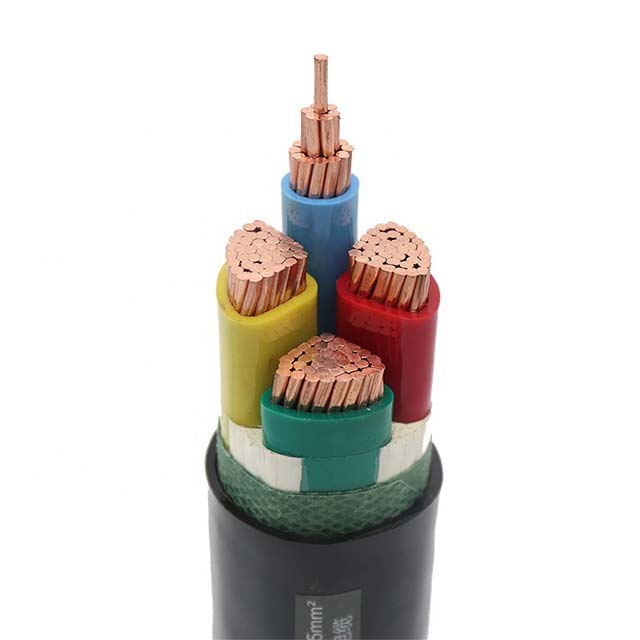

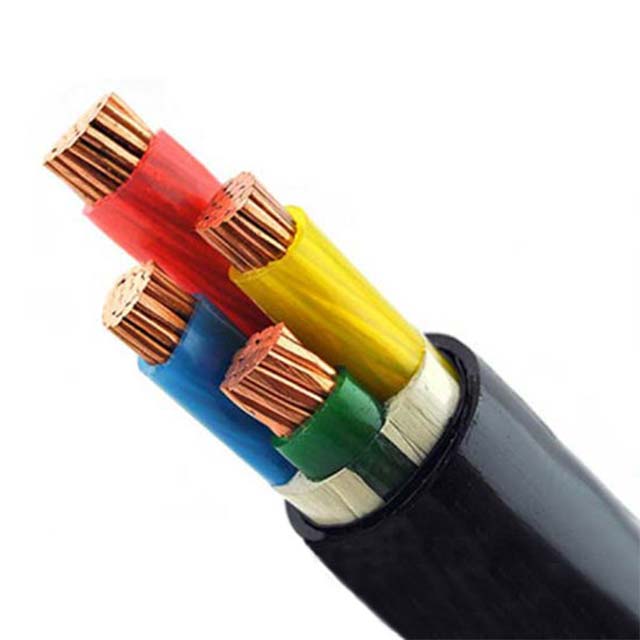

Low Smoke Zero Halogen LSZH Cable

Short Description:

Conductor: Copper

Insulation: XLPE

Insulation Color: Red, Blue, Grey, Yellow/Green or as request

Rated Voltage: 0.6/1KV

Test Voltage: 3.5KV

Standard: IEC, UL, GB, JIS, GS, ASTM

Email: sales@zhongweicables.com

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Payment: T/T, L/C, PayPal

Stock Sample is Free & Available

Send email to us

Product Detail

Product Tags

Application

Low smoke zero Halogen cable used in public and government buildings and where there is sensitive electronic equipment, these cables are designed for increased safety in the case of a fire:Reduction in hazardous fumes which can cause injury when inhaled; Reduction in corrosive chemicals which can cause damage to electronics.

Constrution

Conductor	Solid, Stranded Copper or Aluminum
Insulation	XLPE
Amouring	1)Non-armoued 2)Steel tape armoured (STA) 3)Steel wire armoured(SWA) Aluminum wire armoured(AWA)
Sheath	LSOH material

Characteristics

1)Rated voltage: 0.6/1kV

1)The temperature of laying cable is not lower than 0°C.

3) Max. continuous normal operating Temperature: 90°C

4) Max. permissible temperature at short circuit (5s. at longest): 250°C.

5) Permissible bending radius:

Single core: ≥20(d+D)±5%.

Three-core:≥15(d+D)±5%

(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).

Standards

International: IEC 60502, IEC 60227 IEC 60331, IEC 61034

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request

Parameters

Nom. Cross-section of conductor	Insulation Thickness	Sheath	Approx.	Approx	Max. D.C. Resistance of Conductor (20°C)	Test Voltage	Current Rating
mm2	mm	Thickness	O.D.	Weight	Ω/km	A.C	Current Rating
		mm	mm	kg/km		kV/5min	In air(A)	In soil(A)
4×1.5	0.7	1.8	14.4	241	12.1	3.5	20	27
4×2.5	0.7	1.8	15.4	295	7.41	3.5	26	35
4×4	0.7	1.8	16.5	369	4.61	3.5	34	45
4×6	0.7	1.8	17.8	463	3.08	3.5	43	57
4×10	0.7	1.8	20.9	667	1.83	3.5	60	77
4×16	0.7	1.8	23.4	930	1.15	3.5	83	105
4×25	0.9	1.8	27.1	1351	0.727	3.5	105	125
4×35	0.9	1.8	29.5	1772	0.524	3.5	125	155
4×50	1	1.9	38.4	2380	0.387	3.5	160	185
4×70	1.1	2	43.2	3302	0.268	3.5	200	225
4×95	1.1	2.2	47.3	4330	0.193	3.5	245	270
4×120	1.2	2.3	52.5	5374	0.153	3.5	285	310
4×150	1.4	2.5	58.3	6655	0.124	3.5	325	345
4×185	1.6	2.7	64.7	8246	0.0991	3.5	375	390
4×240	1.7	2.9	73.1	10569	0.0754	3.5	440	450
5×1.5	0.7	1.8	13.6	284	12.1	3.5	20	27
5×2.5	0.7	1.8	16.6	349	7.41	3.5	26	35
5×4	0.7	1.8	17.9	441	4.61	3.5	34	45
5×6	0.7	1.8	19.3	558	3.08	3.5	43	57
5×10	0.7	1.8	22.8	809	1.83	3.5	60	77
5×16	0.7	1.8	25.6	1135	1.15	3.5	83	105
5×25	0.9	1.8	29.7	1664	0.727	3.5	105	125
5×35	0.9	1.9	32.6	2194	0.524	3.5	125	155
5×50	1	2	37.3	3013	0.387	3.5	160	185
5×70	1.1	2.1	42.9	4101	0.268	3.5	200	225
5×95	1.1	2.2	48.2	5382	0.193	3.5	245	270
5×120	1.2	2.4	52.7	6685	0.153	3.5	285	310
5×150	1.4	2.5	58.5	8363	0.124	3.5	325	345
5×185	1.6	2.7	65.1	10268	0.0991	3.5	375	390
5×240	1.7	3.1	72.3	13167	0.0754	3.5	440	450

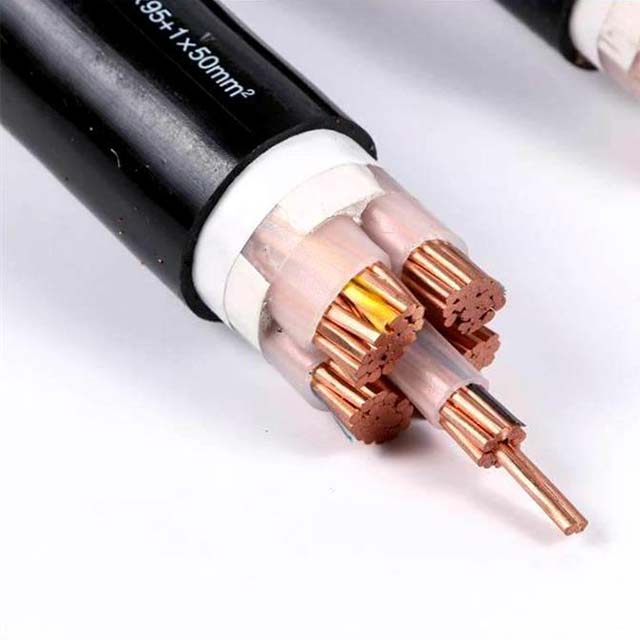

4×2.5+1×1.5	0.7	1.8	16.5	313	7.41		26	35
4×4+1×2.5	0.7	1.8	17.7	424	4.61		34	45
4×6+1×4	0.7	1.8	19.1	535	3.08		43	57
4×10+1×6	0.7	1.8	22.1	760	1.83		60	77
4×16+1×10	0.7	1.8	25.1	1071	1.15		83	105
4×25+1×16	0.7	1.8	29	1556	0.727		105	125
4×35+1×16	0.9	1.9	31.4	1976	0.524		125	155
4×50+1×25	1	2.1	36	2689	0.387		160	185
4×70+1×35	1.1	2.2	41.1	3719	0.268		200	225
4×95+1×50	1.1	2.4	46.3	4903	0.193		245	270
4×120+1×70	1.2	2.5	51	6165	0.153		285	310
4×150+1×70	1.4	2.7	55.8	7431	0.124		325	345
4×185+1×95	1.6	2.9	62.1	9192	0.0991		375	390
4×240+1×120	1.7	3.1	68.8	11860	0.0754		440	450

FAQ

Q: Can we have our logo or company name to be printed on your products or the package?
A: The OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.
Q: What’s the payment terms?
A: 30% T/T deposit, 70% T/T balance payment before shipment.
Q: How does your factory do regarding quality control?
A: We have a strict quality control system, and our professional experts will check the appearance and test functions of all our items before shipment.
Q: How can I get a sample to test your quality?
A: We can provide free samples for your test and checking, just need to bear the freight charge.

Contact us for more informations about our products, our professional team will serve you and customized according to your requirements.
