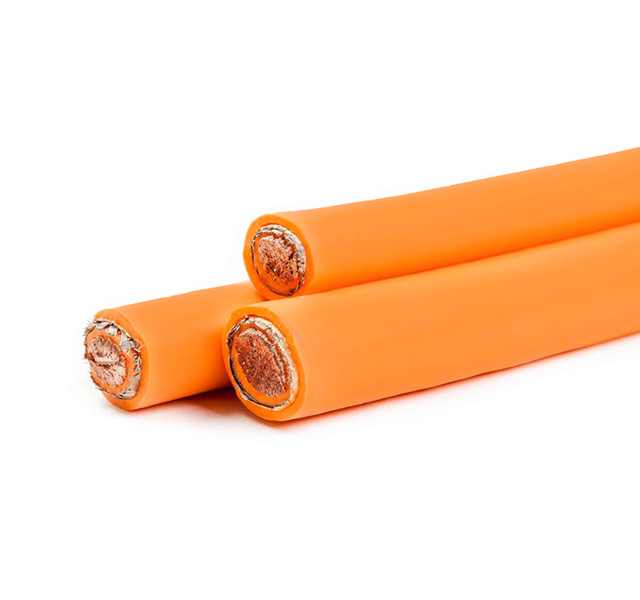

High Voltage Shielded EV Cable
Application

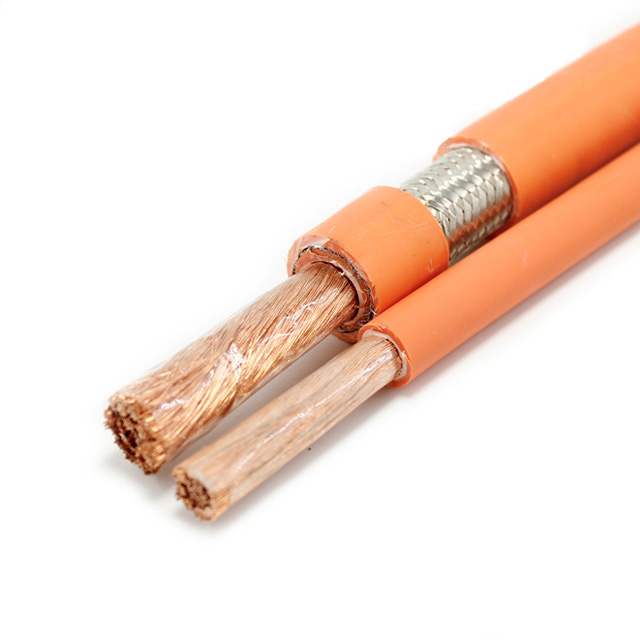

This High Voltage Screened EV Cable is intended for Electric Vehicle battery high voltage system, flexible and easy to bend. This High Voltage electric vehicle screened cable is used for connecting the charging port and the battery, battery inter wiring, the battery, and the engine and other electrical components to carry the electric current power. this type of high voltage electric vehicle screened cable can meet the very high performance for the harsh environment requirements inside the car.
Constrution
Characteristics
Voltage rating: AC 600V/DC 900V, AC 1000V/DC 1500V;
Insulation material: Silicone Rubber
Conductor material: Bare Copper/Tinned Copper
Type of shielding: aluminum foil
Outer sheath material: Silicone Rubber or other materials as required by customers
Fire performance: Flames extinguished at 70s,Keep unburned at least 50mm;
Min. bending radius: 5D(OD≤20mm); 6D(OD >20mm)
Short-term aging: 240h, Comply with QC/T 1037;
Long-term aging: 3000h, Comply with QC/T 1037;
Withstand Voltage：1.0kV/30min. Rise to 5.0kV/5min.(600/900v) 1.0kV/30min.Rise to 5.0kV/5min. Continue Rise to 8.0kV ( 1000/1500V);
Parameters
| Cable specifications (mm2) |
Conductor resistance max (bare copper) (mΩ/m at.20°C) |
Ref. (A) | Ref. (mm) | Rated voltage (AC/DC) |
Rated temperature | Color |
| 2.5 | 7.60 | 30 | 6.0 | 600V/900V 1000V/1500V | -40℃~ 175℃/200℃ | orange |
| 4 | 4.71 | 40 | 6.8 | |||
| 6 | 3.14 | 53 | 8.0 | |||
| 10 | 1.82 | 75 | 9.5 | |||
| 16 | 1.16 | 100 | 11.2 | |||
| 25 | 0.743 | 125 | 13.5 | |||
| 35 | 0.527 | 165 | 14.5 | |||
| 50 | 0.368 | 215 | 17.5 | |||
| 70 | 0.259 | 260 | 19.5 | |||
| 95 | 0.196 | 320 | 21.8 | |||
| 120 | 0.153 | 370 | 24.5 |
FAQ
Q: Can we have our logo or company name to be printed on your products or the package?
A: The OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.
Q: What’s the payment terms?
A: 30% T/T deposit, 70% T/T balance payment before shipment.
Q: How does your factory do regarding quality control?
A: We have a strict quality control system, and our professional experts will check the appearance and test functions of all our items before shipment.
Q: How can I get a sample to test your quality?
A: We can provide free samples for your test and checking, just need to bear the freight charge.
