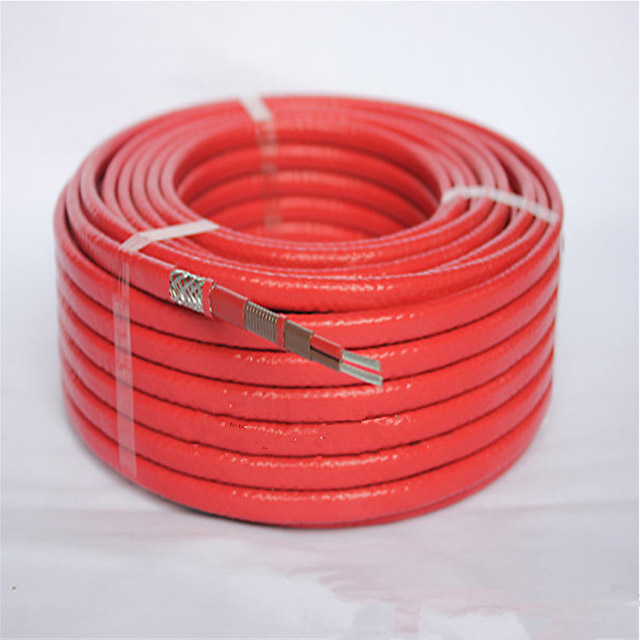

Parallel constant wattage heating cable RDP2

Parallel constant wattage heating cable can be used for pipe and equipment freeze protection and process temperature maintenance requiring high power output or high temperature exposure. This type provide an economical alternative to self regulating heating cable but requires more skill for installation and more advanced control and monitor system.Constant wattage heating cables can provide process temperature maintenance up to 150°C and can withstand exposure temperatures up to 205°C with power on.

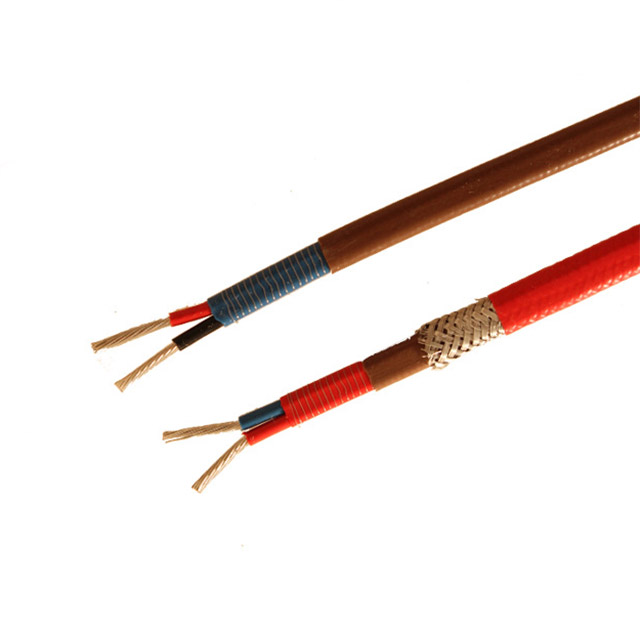

1.Tinned copper stranded wire

2.FEP insulation layer

3.FEP insulation layer

4.Ni-Cr alloy wire

5.PEP insulation layer

6.Tinned copper Metal braid

7.FEP outer sheath

Two paralleled stranded copper wire as the bus wires with insulation layer FEP,then wrap the nickel-chromium alloy as the heating wire connect with bus wires at regular intervals,form the parallel resistance.finally covered with insulation jacket FEP.When the bus wires power on,each parallel resistance begin to heat.thus form a continuous heating cable.

Rated voltage: 220V

Max exposure temperature: 205°c

Normality insulation resistance: ≥20M ohm

Protection level: IP54

Dielectric strength: 2000V 50Hz/1min

Insulation material: FEP

Size: 6.3×9.5mm

Model		Rated power W/M	Max Length M	Max Fluid Temp ℃	Color Outer jacket
general	reinforced
RDP2-J3_10	RDP2R-J3_10	10	210	150℃	Black
RDP2-J3_20	RDP2R-J3_20	20	180	120℃	Red
RDP2-J3_30	RDP2R-J3_30	30	150	90℃	Red
RDP2-J3_40	RDP2R-J3_40	40	140	65℃	Brown
RDP2-J3_50	RDP2R-J3_50	50	100	60℃	Brown
