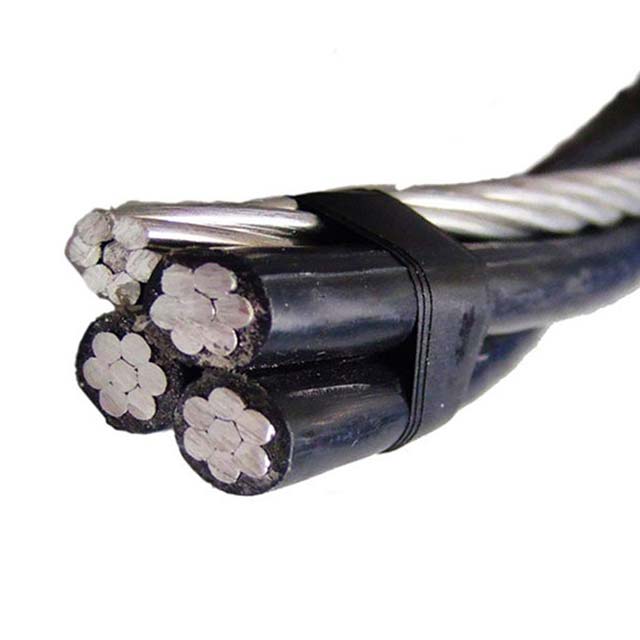

Quadruplex Service Drop Cable
Application
Used to supply 3 phase power, usually from a pole mounted transformer to the user’s service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.
Constrution

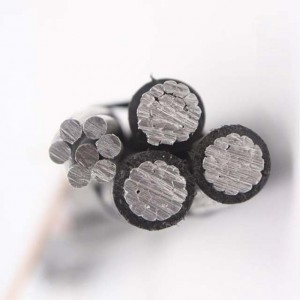

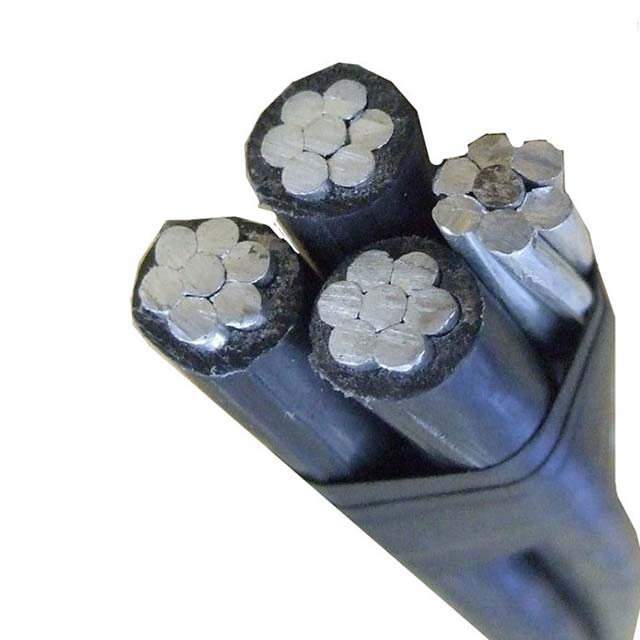

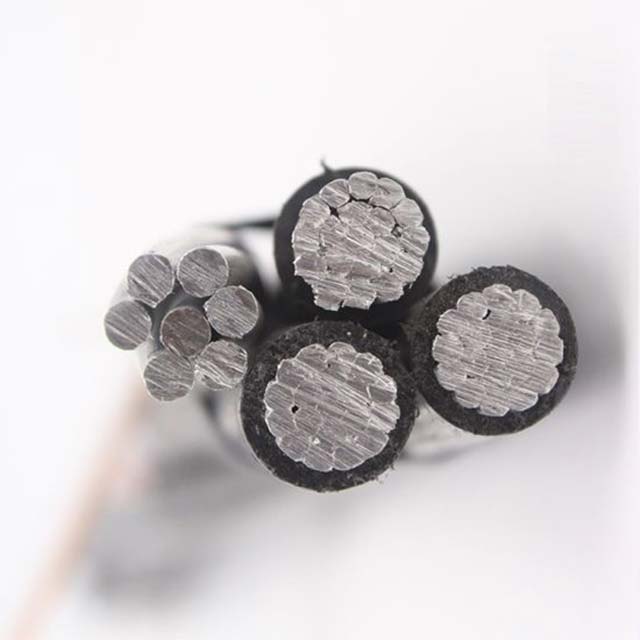

Three insulated phase conductors twisted around a bare aluminum alloy or ACSR neutral conductor.
Conductors: Aluminum alloy 1350-H19 wire.
Insulation: Black thermoset cross-linked polyethylene (XLPE).
Neutral: Bare aluminum alloy or ACSR
Characteristics
Rated voltage:
0.6/1kv
Mechanical performance
Minimum bending radius: x10 cable diameter
Therminal performance
Maximum service temperature: 90°C
Maximum short-circuit temperature: 250°C(max.5s)
Minimum service temperature: -40°C
Standards
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
• B-231 Aluminum Conductors, Concentric-Lay-Stranded
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
• B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors
• B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire
• ANSI/ICEA S-76-474
Parameters
|
Code Word |
Phase Conductor |
Bare Neutral Messenger |
Weight Per 1000 ft.(lbs.) |
Allowable Ampacities |
|||||||
|
|
Size (AWG or kcmil) |
Strand- ing |
Insul. Thick. (mils) |
Equiv. Dia. (AWG) |
Size(kcmil) |
Strand- ing |
Rated Strength (lbs). |
XLP |
POLY |
XLP |
POLY |
|
6201 ALLOY NEUTRAL-MESSENGER |
|||||||||||
|
Bay |
6 |
1 |
45 |
6 |
30.58 |
7 |
1110 |
137 |
137 |
75 |
60 |
|
French Coach |
6 |
7 |
45 |
6 |
30.58 |
7 |
1110 |
146 |
146 |
75 |
60 |
|
German Coach |
4 |
1 |
45 |
4 |
48.69 |
7 |
1760 |
205 |
205 |
100 |
80 |
|
Arabian |
4 |
7 |
45 |
4 |
48.69 |
7 |
1760 |
217 |
217 |
100 |
80 |
|
Belgian |
2 |
7 |
45 |
2 |
77.47 |
7 |
2800 |
328 |
328 |
135 |
105 |
|
Shetland |
1/0 |
19 |
60 |
1/0 |
123.3 |
7 |
4460 |
519 |
519 |
180 |
140 |
|
Thoroughbred |
2/0 |
19 |
60 |
2/0 |
155.4 |
7 |
5390 |
639 |
639 |
205 |
160 |
|
Trotter |
3/0 |
19 |
60 |
3/0 |
195.7 |
7 |
6790 |
789 |
789 |
235 |
185 |
|
Walking |
4/0 |
19 |
60 |
4/0 |
246.9 |
7 |
8560 |
977 |
977 |
275 |
210 |
|
Code Word |
Phase Conductor |
Bare Neutral Messenger |
Weight Per 1000 ft.(lbs.) |
Allowable Ampacities |
||||||
|
|
Size (AWG or kcmil) |
Strand- ing |
Insul. Thick. (mils) |
Size (AWG or kcmil) |
Strand- ing |
Rated Strength (lbs). |
XLP |
POLY |
XLP |
POLY |
|
AAC NEUTRAL-MESSENGER |
||||||||||
|
Clydesdale |
4 |
1 |
45 |
4 |
7 |
881 |
198 |
198 |
100 |
80 |
|
Pinto |
4 |
7 |
45 |
4 |
7 |
881 |
211 |
211 |
100 |
80 |
|
Mustang |
2 |
7 |
45 |
2 |
7 |
1350 |
318 |
318 |
135 |
105 |
|
Criollo |
1/0 |
19 |
60 |
1/0 |
7 |
1990 |
503 |
503 |
180 |
140 |
|
Percheron |
2/0 |
19 |
60 |
2/0 |
7 |
2510 |
619 |
619 |
205 |
160 |
|
Hanovarian |
3/0 |
19 |
60 |
3/0 |
19 |
3310 |
764 |
764 |
235 |
185 |
|
Oldenburg |
4/0 |
19 |
60 |
4/0 |
19 |
4020 |
945 |
945 |
275 |
210 |
|
Lippizaner |
336.4 |
19 |
80 |
336.4 |
19 |
6146 |
1519 |
1519 |
370 |
280 |
|
Code Word |
Phase Conductor |
Bare Neutral Messenger |
Weight Per 1000 ft.(lbs.) |
Allowable Ampacities |
||||||
|
|
Size (AWG or kcmil) |
Strand- ing |
Insul. Thick. (mils) |
Size (AWG or kcmil) |
Strand- ing |
Rated Strength (lbs). |
XLP |
POLY |
XLP |
POLY |
|
ACSR NEUTRAL-MESSENGER |
||||||||||
|
Morochuca |
6 |
1 |
45 |
6 |
(6)/(1) |
1190 |
145 |
145 |
75 |
60 |
|
Chola |
6 |
7 |
45 |
6 |
(6)/(1) |
1190 |
153 |
153 |
75 |
60 |
|
Morgan |
4 |
1 |
45 |
4 |
(6)/(1) |
1860 |
217 |
217 |
100 |
80 |
|
Hackney |
4 |
7 |
45 |
4 |
(6)/(1) |
1860 |
229 |
229 |
100 |
80 |
|
Palomino |
2 |
7 |
45 |
2 |
(6)/(1) |
2850 |
347 |
347 |
135 |
105 |
|
Costena |
1/0 |
19 |
60 |
1/0 |
(6)/(1) |
4380 |
549 |
549 |
180 |
140 |
|
Grullo |
2/0 |
19 |
60 |
2/0 |
(6)/(1) |
5310 |
677 |
677 |
205 |
160 |
|
Suffolk |
3/0 |
19 |
60 |
3/0 |
(6)/(1) |
6620 |
837 |
837 |
235 |
185 |
|
Appaloosa |
4/0 |
19 |
60 |
4/0 |
(6)/(1) |
8350 |
1038 |
1038 |
275 |
210 |
|
Gelding |
336.4 |
19 |
80 |
4/0 |
(6)/(1) |
8350 |
1494 |
1494 |
370 |
280 |
|
Bronco |
336.4 |
19 |
80 |
336.4 |
(18)/(1) |
8680 |
1568 |
1568 |
370 |
280 |
