Self Regulating Heat Tracing Cable
Application
As for the application of electric heat tracing, it may be known that it is the most effective and advanced method to maintain the process temperature of liquid storage medium tanks and infusion pipes for heat tracing, heat preservation, antifreeze and anticoagulation of pipes, valves, pumps, tanks and tank solvents in chemical, electric power, machinery, shipping, petroleum, pharmaceutical and other industries. Electric heat tracing is not only suitable for steam heat tracing places, but also can solve the difficult problems of steam heat tracing.

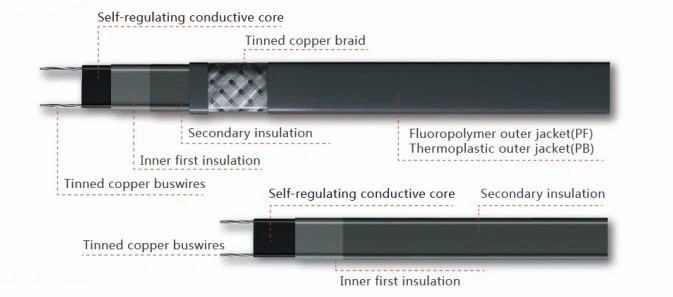

Constrution
LSR self regulating heat tracing cable is an exceptional heating cable. In each heat tracing wire, the number of circuits between the busbars varies with the temperature. When the temperature around the electric heat tracing wire becomes cold, the conductive plastic will shrink the micro molecules to connect the carbon particles to form a circuit, and the current will pass through these circuits to heat the electric heat tracing wire.
Characteristics
LSR-J is the basic low temperature heating cable type, with the Max.maintain temperature up to 65℃（149°F）, while the Max.exposure temperature is 85℃ (185°F). Generally used in places where there is no explosion-proof or anti-corrosion requirements, and the environmental humidity is not high.
LSR-P/F is enhanced with an additional aluminum-magnesium alloy braid(tinned cooper for option), sheathed by a fluoropolymer out jacket. Compared to LSR-J, it has a good performance on anti-corrosive, also with characteristic of explosion-proof, ideal for places with explosion-proof requirements, especially chemicals, power supply and other places need corrosion resistance.
Parameters
|
Output wattage at 10℃ |
10/15/25/30 W/M |
|
Braiding material and covering area（for LSR-P/F） |
Aluminum-magnesium alloy (Tinned cooper for option) |
|
Max. Exposure temperature |
65 ℃(149°F） |
|
Max. Exposure temperature |
85℃（185°F） |
|
Min.Installation temperature |
-40℃ |
|
Heat stability |
Maintain Over 95% heat after 300 cycles from10 ℃ to 149 ℃ |
|
Conductor |
Tinned cooper 7*0.42mm |
|
Max.length of single power supply |
100m |
|
Material of insulation/ jacket |
PVC, PE, Modified Polyolefin, PTFE |
|
Bending radius |
5 times*cable thickness |
|
Resistance between bus wire and braiding |
20 MΩ/M with a VDC 2500 megohmmete |
|
Voltage |
110-120/208-277 V |
|
Regular color |
Black (other colors customized) |
|
Regular size |
LSR-J 12*3.5mm, LSR-P/F 13.8*5.5mm (Width*Thickness) |
Advantage
1. Energy saving: Due to the unique PTC property, the cable adjust the output power respond to ambient temperature.
2. Easy installation: PTC semi-conductive matrix is composed of the infinite parallel connection of carbon particles, allowing it to be cut into the exact length required.
3. Long service life: A lower starting current and attenuation rate ensures our cables provide you a longer service life.
4. Safety for use: Can be overlapped by themselves without the danger of overheat or burnout.
5. High quality with low cost: self- regulating, easy operation, low cost to maintain. No recycled material used, all the components are manufactured by our own factory, which means better quality and competitive cost for you.
