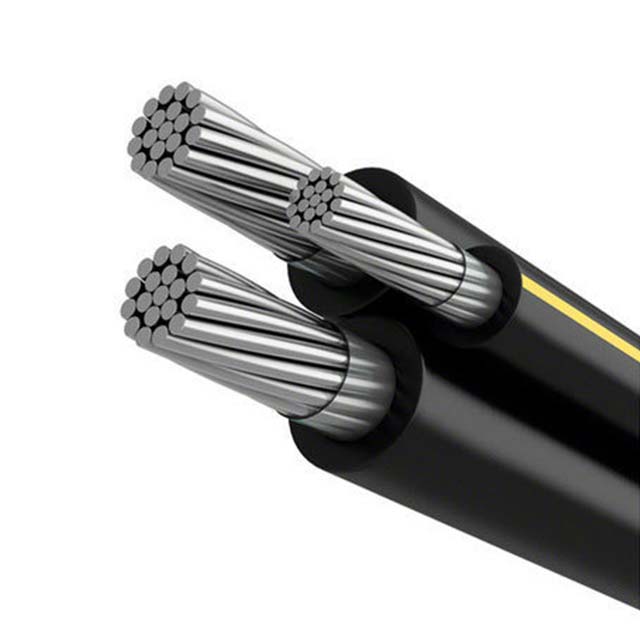

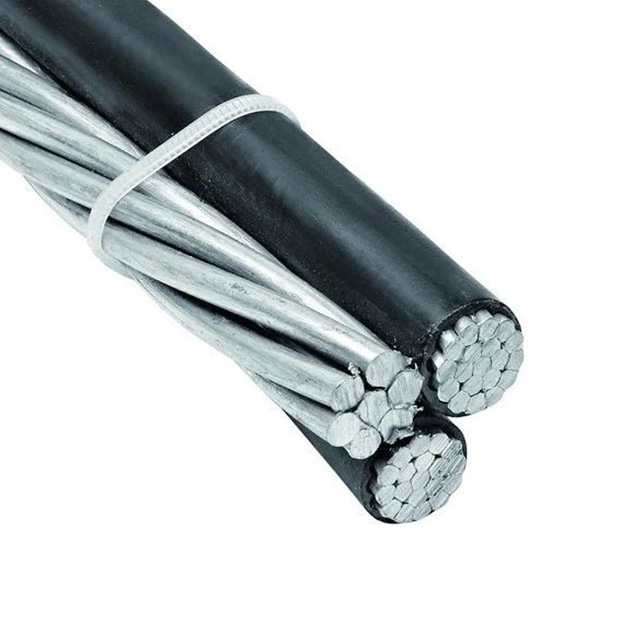

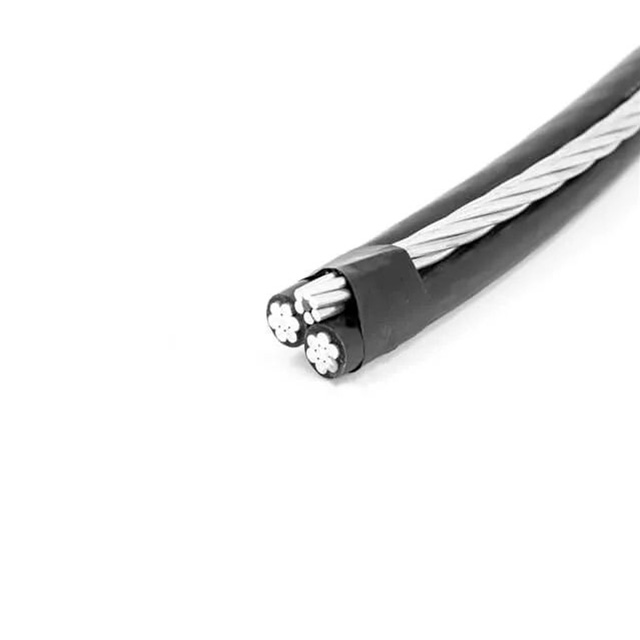

Triplex Service Drop Cable
Application
This triplexed cable is suited for use as drop cable from a pole mounted transformer to the service entrance of a structure, or as secondary distribution between poles. The cable should be limited to 600V phase to phase and not exceed 90˚C.
Constrution
Two insulated phase conductors twisted around a bare aluminum alloy or ACSR neutral conductor.
Conductors: Aluminum alloy 1350-H19 wire.
Insulation: Black thermoset cross-linked polyethylene (XLPE).
Neutral: Bare aluminum alloy or ACSR.
Characteristics
Rated voltage:
0.6/1kv
Mechanical performance
Minimum bending radius: x10 cable diameter
Therminal performance
Maximum service temperature: 90°C
Maximum short-circuit temperature: 250°C(max.5s)
Minimum service temperature: -40°C
Standards
• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
• B-231 Aluminum Conductors, Concentric-Lay-Stranded
• B-232 Aluminum Conductors, Concentric-Lay-Stranded,
Coated Steel Reinforced (ACSR)
• B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors
• B-901 Compressed Round Stranded Aluminum Conductors
Using Single Input Wire
• ANSI/ICEA S-76-474
Parameters
|
Triplex Service Drop - AAAC-Alloy Neutral Messenger |
||||||||||
|
Code Word |
Phase Conductors |
Bare Neutral |
Weight |
Rating |
||||||
|
per 1000 (lbs) |
(AMPS) |
|||||||||
|
Size AWG |
Strand |
Insulation Thickness (MLS) |
Size AWG |
Strand |
Breaking Strength (lbs) |
XLP |
Poly |
XLP |
Poly |
|
|
Minex |
6 |
Solid |
45 |
6 |
7 |
1,110 |
106.6 |
102.9 |
85 |
70 |
|
Hippa |
6 |
7/w |
45 |
6 |
7 |
1,110 |
107 |
105.7 |
85 |
70 |
|
Prawn |
4 |
Solid |
45 |
4 |
7 |
1,760 |
158.4 |
154.1 |
110 |
90 |
|
Barnacles |
4 |
7/w |
45 |
4 |
7 |
1,760 |
160 |
157 |
110 |
90 |
|
Shrimp |
2 |
7/w |
45 |
2 |
7 |
2,800 |
243 |
238 |
150 |
115 |
|
Gammarus |
1/0 |
7/w |
60 |
1/0 |
7 |
4,460 |
390 |
384 |
200 |
155 |
|
Leda |
1/0 |
19/w |
60 |
1/0 |
7 |
4,460 |
384 |
378 |
200 |
155 |
|
Dungenese |
2/0 |
7/w |
60 |
2/0 |
7 |
5,390 |
481 |
474 |
230 |
180 |
|
Cyclops |
2/0 |
19/w |
60 |
2/0 |
7 |
5,390 |
473 |
467 |
230 |
180 |
|
Flustra |
3/0 |
19/w |
60 |
3/0 |
7 |
6,790 |
596 |
589.1 |
260 |
205 |
|
Lepas |
4/0 |
19/w |
60 |
4/0 |
7 |
8,560 |
725 |
716 |
300 |
235 |
|
Triplex Service Drop - Aluminum Conductor - AAAC - Alloy Reduced Neutral Messenger |
||||||||||
|
Code Word |
Phase Conductors |
Bare Neutral |
Weight |
Rating |
||||||
|
per 1000 (lbs) |
(AMPS) |
|||||||||
|
Size AWG |
Strand |
Insulation Thickness (MLS) |
Size AWG |
Strand |
Breaking Strength (lbs) |
XLP |
Poly |
XLP |
Poly |
|
|
Artemia |
4 |
Solid |
45 |
6 |
7 |
1,110 |
134 |
132 |
110 |
90 |
|
Crab |
4 |
7/w |
45 |
6 |
7 |
1,110 |
144 |
141.2 |
110 |
90 |
|
Solaster |
2 |
7/w |
45 |
4 |
7 |
1,760 |
216 |
212.6 |
150 |
115 |
|
Sandcrab |
1/0 |
7/w |
60 |
2 |
7 |
2,800 |
348 |
341 |
200 |
155 |
|
Echinus |
1/0 |
19/w |
60 |
2 |
7 |
2,800 |
342 |
336 |
200 |
155 |
|
Crayfish |
2/0 |
7/w |
60 |
1 |
7 |
3,530 |
452.6 |
422.5 |
230 |
180 |
|
Sipho |
2/0 |
19/w |
60 |
1 |
7 |
3,530 |
441 |
422.5 |
230 |
180 |
|
Fulgar |
3/0 |
19/w |
60 |
1/0 |
7 |
4,460 |
525 |
518 |
260 |
205 |
|
Arca |
4/0 |
19/w |
60 |
2/0 |
7 |
5,360 |
640 |
632 |
300 |
235 |
|
Triplex Service Drop - Aluminum Conductor - AAC - Neutral Messenger |
||||||||||
|
Code Word |
Phase Conductors |
Bare Neutral |
Weight |
Rating |
||||||
|
per 1000 (lbs) |
(AMPS) |
|||||||||
|
Size AWG |
Strand |
Insulation Thickness (MLS) |
Size AWG |
Strand |
Breaking Strength (lbs) |
XLP |
Poly |
XLP |
Poly |
|
|
Haiotis |
6 |
Solid |
45 |
6 |
7 |
563 |
102.5 |
98.8 |
85 |
70 |
|
Patella |
6 |
7/w |
45 |
6 |
7 |
563 |
104 |
101.6 |
85 |
70 |
|
Fusus |
4 |
Solid |
45 |
4 |
7 |
881 |
151.9 |
147.6 |
110 |
90 |
|
Oyster |
4 |
7/w |
45 |
4 |
7 |
881 |
154 |
151.7 |
110 |
90 |
|
Clam |
2 |
7/w |
45 |
2 |
7 |
1,350 |
232 |
228 |
150 |
115 |
|
Murex |
1/0 |
7/w |
1/0 |
1/0 |
7 |
1,990 |
374 |
367 |
200 |
155 |
|
Purpura |
1/0 |
19/w |
1/0 |
1/0 |
7 |
1,990 |
368 |
362 |
200 |
155 |
|
Nassa |
2/0 |
7/w |
2/0 |
2/0 |
7 |
2,510 |
461 |
453 |
230 |
180 |
|
Melita |
3/0 |
19/w |
3/0 |
3/0 |
19 |
3,310 |
585.2 |
562.9 |
260 |
205 |
|
Portunus |
4/0 |
19/w |
4/0 |
4/0 |
19 |
4,020 |
693 |
684 |
300 |
235 |
|
Nannynose |
336.4 |
19/w |
336.4 |
336.4 |
19 |
6,146 |
1,111.00 |
1,096.00 |
380 |
290 |
|
Triplex Service Drop - Aluminum Conductor - Full Size ACSR Messenger |
||||||||||
|
Code Word |
Phase Conductors |
Bare Neutral |
Weight |
Rating |
||||||
|
per 1000 (lbs) |
(AMPS) |
|||||||||
|
Size AWG |
Strand |
Insulation Thickness (MLS) |
Size AWG |
Strand |
Breaking Strength (lbs) |
XLP |
Poly |
XLP |
Poly |
|
|
Paludina |
6 |
Solid |
45 |
6 |
6/1 |
1,190 |
114 |
113 |
85 |
70 |
|
Voluta |
6 |
7/w |
45 |
6 |
6/1 |
1,190 |
115 |
112 |
85 |
70 |
|
Whelk |
4 |
Solid |
45 |
4 |
6/1 |
1,860 |
163 |
161 |
110 |
90 |
|
Periwinkle |
4 |
7/w |
45 |
4 |
6/1 |
1,860 |
172 |
169 |
110 |
90 |
|
Conch |
2 |
7/w |
45 |
2 |
6/1 |
2,850 |
262 |
257 |
150 |
115 |
|
Neritina |
1/0 |
7/w |
60 |
1/0 |
6/1 |
4,380 |
420 |
414 |
200 |
115 |
|
Cenia |
1/0 |
19/w |
60 |
1/0 |
6/1 |
4,380 |
414 |
408 |
200 |
115 |
|
Runcina |
2/0 |
7/w |
60 |
2/0 |
6/1 |
5,310 |
519 |
512 |
230 |
180 |
|
Triton |
2/0 |
19/w |
60 |
2/0 |
6/1 |
5,310 |
511 |
505 |
230 |
180 |
|
Cherrystone |
3/0 |
7/w |
60 |
3/0 |
6/1 |
6,620 |
656 |
643 |
260 |
205 |
|
Mursia |
3/0 |
19/w |
60 |
3/0 |
6/1 |
6,620 |
633 |
626 |
260 |
205 |
|
Razor |
4/0 |
7/w |
60 |
4/0 |
6/1 |
8,350 |
814 |
799 |
300 |
235 |
|
Zuzara |
4/0 |
19/w |
60 |
4/0 |
6/1 |
8,350 |
785 |
777 |
300 |
235 |
|
Limpet |
336.4 |
19/w |
80 |
336.4 |
18/1 |
8,680 |
1,160 |
1,147 |
300 |
290 |
|
Triplex Service Drop - Aluminum Conductor - ACSR Reduced Size Messenger |
||||||||||
|
Code Word |
Phase Conductors |
Bare Neutral |
Weight |
Rating |
||||||
|
per 1000 (lbs) |
(AMPS) |
|||||||||
|
Size AWG |
Strand |
Insulation Thickness (MLS) |
Size AWG |
Strand |
Breaking Strength (lbs) |
XLP |
Poly |
XLP |
Poly |
|
|
Scallop |
4 |
Solid |
45 |
6 |
6/1 |
1,190 |
142 |
139 |
110 |
90 |
|
Strombus |
4 |
7/w |
45 |
6 |
6/1 |
1,190 |
151 |
148 |
110 |
90 |
|
Cockle |
2 |
7/w |
45 |
4 |
6/1 |
1,860 |
228 |
224 |
150 |
115 |
|
Janthina |
1/0 |
7/w |
60 |
2 |
6/1 |
2,850 |
367 |
360 |
200 |
155 |
|
Ranella |
1/0 |
19/w |
60 |
2 |
6/1 |
2,850 |
361 |
356 |
200 |
155 |
|
Cavolinia |
2/0 |
7/w |
60 |
1 |
6/1 |
3,550 |
452 |
444 |
230 |
180 |
|
Clio |
2/0 |
19/w |
60 |
1 |
6/1 |
3,550 |
444 |
437 |
230 |
180 |
|
Sanddollar |
3/0 |
7/w |
60 |
1/0 |
6/1 |
4,380 |
570 |
557 |
260 |
205 |
|
Aega |
3/0 |
19/w |
60 |
1/0 |
6/1 |
4,380 |
565 |
552 |
260 |
205 |
|
Cutlefish |
4/0 |
7/w |
60 |
2/0 |
6/1 |
5,310 |
706 |
691 |
300 |
235 |
|
Cerapus |
4/0 |
19/w |
60 |
2/0 |
6/1 |
5,310 |
678 |
670 |
300 |
235 |
|
Cowry |
336.4 |
19/w |
80 |
4/0 |
6/1 |
8,350 |
1,135 |
1,093 |
380 |
290 |
