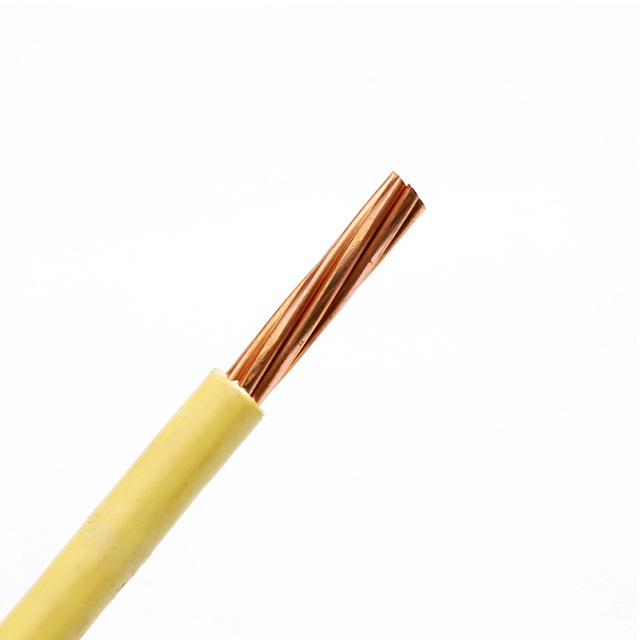

Type TW/THW Wire
Application
Type TW and THW wire used for general purpose wiring for powerand lighting, for installation in air, conduit, duct or other recognizedraceways, in wet or dry locations.

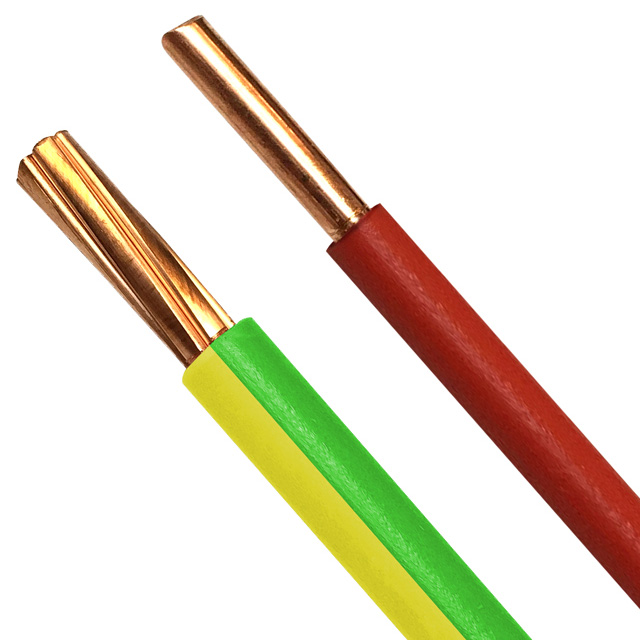

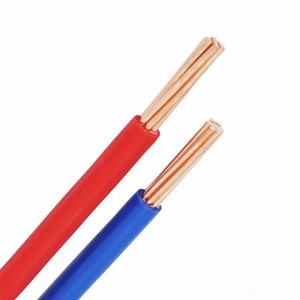

Constrution
Characteristics
Voltage: 600v
Minimum bending radius: x4 cable diameter
Maximum service temperature: 90°C
Maximum short-circuit temperature: 250°C (max. 5s)
Standards
• ASTM B-3: Copper Annealed or Soft Wires.
• ASTM B-8: Copper Stranded Conductors in Concentric Layers, Hard, Semi-hard or Soft.
• UL - 83: Wires and Cables Insulated with Thermoplastic Material.
• NEMA WC-5: Wires and Cables Insulated with Thermoplastic Material (ICEA S-61-402) for Transmission and Distribution of Electric Power
Parameters
| Size | Construction | Conductor Dia. |
Insulation Thickness |
Approx. Overall Dia. |
Approx.Weight | ||
| No. of Wires |
Dia. of Wires |
||||||
| TW | THW | ||||||
| AWG/Kcmil | No. | mm | mm | mm | mm | kg/km | kg/km |
| 14 | 1 | 1.63 | 1.63 | 0.77 | 3.17 | 26.8 | 26.8 |
| 12 | 1 | 2.06 | 2.06 | 0.77 | 3.60 | 38.7 | 38.7 |
| 10 | 1 | 2.59 | 2.59 | 0.77 | 4.13 | 58.1 | 58.1 |
| 8 | 1 | 3.27 | 3.27 | 1.15 | 5.57 | 96.8 | 96.8 |
| 14 | 7 | 0.62 | 1.86 | 0.77 | 3.40 | 28.3 | 28.3 |
| 12 | 7 | 0.78 | 2.34 | 0.77 | 3.88 | 41.7 | 41.7 |
| 10 | 7 | 0.98 | 2.94 | 0.77 | 4.48 | 62.5 | 62.5 |
| 8 | 7 | 1.24 | 3.72 | 1.15 | 6.02 | 102.7 | 102.7 |
| 6 | 7 | 1.56 | 4.68 | 1.53 | 7.74 | 165.2 | 166.7 |
| 4 | 7 | 1.96 | 5.88 | 1.53 | 8.94 | 247.1 | 248.6 |
| 2 | 7 | 2.48 | 7.44 | 1.53 | 10.50 | 375.1 | 376.6 |
| 1/0 | 19 | 1.89 | 9.20 | 2.04 | 13.28 | 589.4 | 592.3 |
| 2/0 | 19 | 2.13 | 10.34 | 2.04 | 14.42 | 732.2 | 735.2 |
| 3/0 | 19 | 2.39 | 11.61 | 2.04 | 15.69 | 904.9 | 909.3 |
| 4/0 | 19 | 2.68 | 13.01 | 2.04 | 17.09 | 1120.7 | 1123.6 |
| 250 | 37 | 2.09 | 14.20 | 2.42 | 19.04 | 1334.9 | 1339.4 |
| 300 | 37 | 2.29 | 15.55 | 2.42 | 20.39 | 1583.5 | 1587.9 |
| 350 | 37 | 2.47 | 16.79 | 2.42 | 21.63 | 1824.6 | 1830.5 |
| 400 | 37 | 2.64 | 17.96 | 2.42 | 22.80 | 2068.6 | 2074.6 |
| 500 | 37 | 2.95 | 20.05 | 2.42 | 24.89 | 2553.8 | 2559.7 |
| 600 | 61 | 2.52 | 22.00 | 2.80 | 27.60 | 3016.4 | 3021.0 |
| 750 | 61 | 2.82 | 24.64 | 2.80 | 30.24 | 3817.3 | 3824.7 |
| 1000 | 61 | 3.25 | 28.40 | 2.80 | 34.00 | 5007.8 | 5018.2 |
